Hot-Sale Wc67K CNC Hydraulic Press Brake Machine/Press Brake Malaysia/Micro Press Brake with High Quality

Product Description

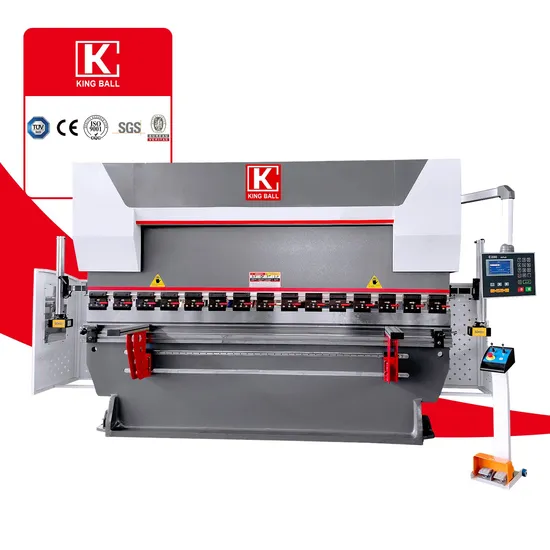

Torsion bar Synchronous CNC Press Brake
Model: KCN-12532
2 Axis CNC Control(X, Y)
X: Backgauge front and back; Y: Ram stroke
R : Backgauge up and down (Pedal switch button control);
W: Worktable crowning (optional)

Main functions and features
1. Overall welded and processed structure.
2. Mechanical stop and steel torsion bar to maintain synchronization and high precision.
3. Movement of backgauge and ram stroke is servo controlled by CT8 Controller
4. The function of angle programming of CT8 Controller will bring high bending efficiency.
5. X axis is controlled by servo motor, with strong synchronous belt,with high control accuracy,fast positioning and low noise.
6. With high-precision cnc moulds/dies and quick clamps,it will be more accurate and durable when bending plates,high efficiency when removing and changing upper punch tools.
7. With imported hydraulic system,stable and high precision when persistent working.
8. Imported ball bearing lead screw and linear guide rail are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.

Technical Parameters

NO.	Item	Parameter		Unit
1	Nominal pressure	1250		KN
2	Table length	3200		mm
3	Max.Slider stroke	150		mm
4	Max.Shut height	410		mm
5	Between columns	2600		mm
6	Throat depth	320		mm
7	Main motor power	7.5		KW
8	Down Speed	100		mm/s
9	Pressing Speed	10		mm/s
10	Return Speed	90		mm/s
11	Control axis	X+Y		/
12	X axis Stroke	500		mm
13	X axis Speed	300		mm/s
14	R axis Stroke	150		mm
15	R axis Speed	50		mm/s
16	Backgauge Stoppers	2		/
		L	3700	mm
17	Overall dimension	W	1800	mm
		H	2450	mm
18	Machine weight	7200		kg

Detailed Pictures
Backgauge with ball screw and linear guide, high precision,fast speed and low noise.
Double sliding front support arm installed on Manual table crowning(optional).
the linear guide, movable easy
Siemens main motor German brand. European style quick release clamping .
Sunny pump USA brand.
Rexroth valve German brand.
The torsion bar is synchronized with the gear rack. ram down fast, easy to adjust the two sides of the synchronization. The connector use wear -resistant brass.
Pedal switch with emergency stop, safe operation, The R axis up and down control integrated on the pedal switch, easy to operate. the base with rollers easy to move.

Main configuration

Name	Producer
CNC controller	CybTouch 8 Switzerland brand
Main motor	Siemens Germany brand
Electrical components	Schneider France brand
Gear pump	Sunny USA brand
Seal ring	NOK Japan brand
Hydraulic system	Boschrexroth Germany brand
Ball screw ,Linear guide	HIWIN Taiwan brand
Tubing connector	EMB Germany Brand
Servo Motor and drive	Thinkvo China brand

CybTouch 8 CNC controller
Easy Operating:
Large, vivid and high-contrast fully touch screen. Simple pages, clear display, large keys. Very simple single bends with EasyBend page. Complete programming allows efficient mass-production of parts with multiple bends. Online help and warning pop-ups make it a very user-friendly software. Available in many languages. Comfortable wireless software updating and data backup using PC or Notebook.
Better Bending: Various automatic calculations of bend functions according to materials. Bending sequences and programs can be memorized. Angle, pressure and crowning management.
Powerful: Bend allowance calculation. Pressure - crowning calculation (P version only). Modular tools for each part or bend. Punch depth calculation. Angle and back gauge correction. The standard accessories are in the below:
Anchor bolt Hex nut Seal ring Gasket Grease gun Allen wrench Foot switch Front support arms Electrical box key, control panel key Operation manuals Our Factory-NANJING Jinqiu CNC Machine Tool Co., Ltd
has been focusing on research and design, manufacturing and sales of better prices with better quality machines such as Press Brakes, Shearing Machines,Rolling Machines,Press Machine,Ironworkers,Pipe Bend Machine, press brake tooling blade and so on, our brand is Kingball ,since it was established in 2003. Kingball is a true expert of machine- manufacturing based on more than 10 years experience.
Our Company has got the certification of ISO9001 SGS CE TUV and BV have been exported to more than 60 countries including UK, USA, Italy, Spain, Ireland, India, Thailand, Malaysia, South Africa, and so on.
We have 28,000 square meters workshop, advanced production equipment,220 experienced staff, and strictly effective quality assurance system. Kingball selects best material and parts for the machines and the most important is Kingball manufactures most of the parts by itself for better to control the quality. Therefore Kingball brand products win the reputation of practical, reliable and durable.
Nowadays our company is developing the global market, We are currently looking for all agents and powerful cooperation globally to sell our products worldwide. We are glad to try our best to supply Free technical support and related information all of the China Machine. Any advise you have , please do not hesitate to contact with us for your requirement, thank you!
Our customers from all over the world
Certificates
Any needs,feel free to contact me!

---
