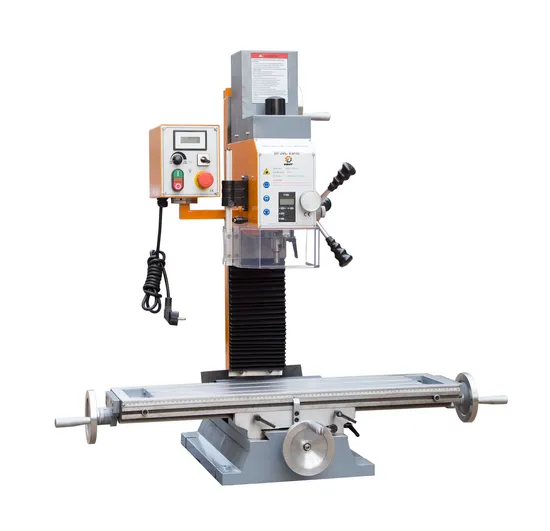

Vertical ZAY7025V Variable Speed Milling and Driling Machine

Product Description

Product Description
Milling and drilling machine main features:
1. With micro feed handwheel;
2. High precision bored and honed milling head;
3. Tilting and swieveling head;
4. Geared drive, lower noise;
5. Adjustable stops on table.

MAIN SPECIFCATIONS	ZAY7025V
Drilling capacity	25mm
Max.face mill capacity	80mm
Max.end mill capacity	25mm
Sleeve stroke	50mm
Working table size	500(700)X180mm
X axis travel	290/490mm
Y axis travel	180mm
Z axis travel	360mm
Motor power	750W
Max.distance spindle to table	355mm
Spindle taper	MT3
Spindle speed	50-3000rpm
Net weight/gross weight	130/158kg
Packing size	620X720X910mm

Guarantee Terms: Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
Detailed Images
Standard accessories:
Speed dislay
Morse taper MT2/B16
Draw in rod M10
Drill chuck 0-13mm
Tool box and tools
Optional accessories:
Coolant bump
Milling vice
Milling chuck
End mill cutter
Stand with chip tray
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.

---
