Heavy Duty Lathe Machine Horizontal Q1335 Pipe Threading Lathe

Product Description

Product Description

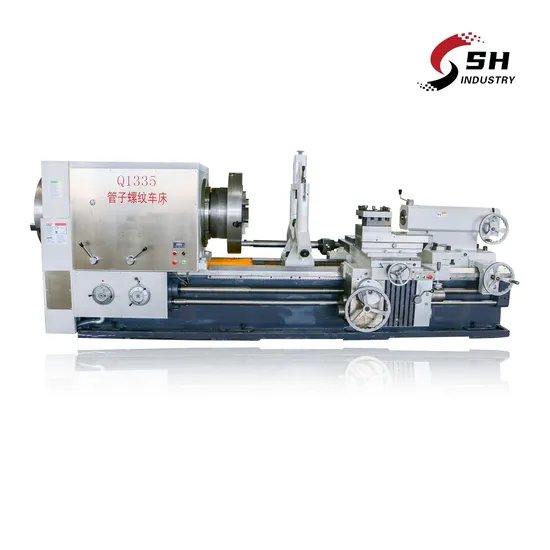

Heavy Duty Lathe Machine Horizontal Q1335 Pipe Threading Lathe
Product Parameters

Specification		Unit	QK1335	QK1353	QK1363
Max. swing over bed dia.		mm	1000	1250	1400
Max. swing over cross slide dia.		mm	610	860	960
Max. length of workpiece		mm	1500/3000
Width of bed		mm	755	755	755/1100
Spindle bore		mm	360	540	640
Power of spindle motor		kw	22	22	37
Mode of spindle speed		/	Two gears, stepless in gears
Spindle speed range		r/min	L: 30-130	L: 23-120	L: 2-90
			H: 65-260	H: 65-258	H: 65-120
X/Z axis travel		mm	X:550 Z:1250	X:570 Z:1250
X/Z rapid traverse speed		mm/min	1400	2000
X axis motor	Speed	r/min	1500	2000
	Torque	N.m	18	22
	Power	kw	2.8	2.8
Z axis motor	Speed	r/min	1500	2000
	Torque	N.m	22	30
	Power	kw	3.5	3.5
Tailstock quill	Diameter	mm	140	160
	Travel	mm	300	300
	Taper	/	Morse 6	Morse 6
Turret	Type		Vertical four station	Vertical four station
Chuck			780 4 jaw chuck	4 jaw chuck
CNC control system			GSK, FANUC, SIEMENS
Positioning accuracy		mm	0.02	0.04
Repeatability		mm	0.01	0.02
Overall dimension		mm	5000*2200*2100	5000*2800*2200	5300*2800*2800
Net weight		T	12	18	19

Application:
Q13 series pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.
This series lathe machine is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.
The main performance characteristics:
Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to relize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Equiped with taper guide bar device this enables the machine to process taper threads.
Standard accessories:
Tool post,Tailstock,Chuck,taper guide bar,Lighting lamp,Coolant pump,Rear support bracket,Pad iron etc.
Optional accessories:
Digital readout,Chuck,Faceplate,Chasing dial,Center rest,Signal light,Protective cover(lead-screw,chuck,tool post),and Grinding attachment etc.
Realistic photos

Detailed Photos
Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
