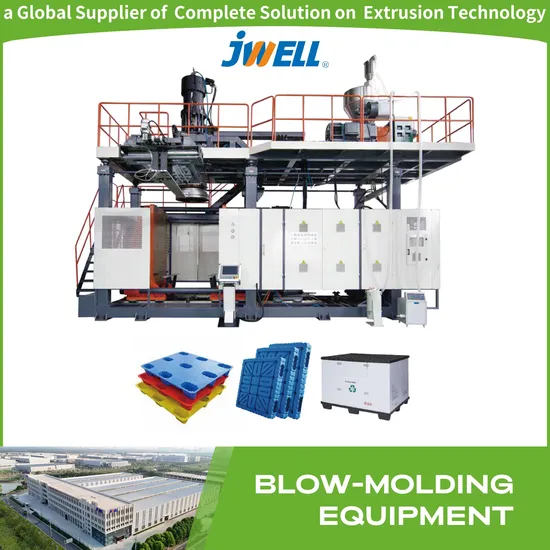

Jwell Jwz-Bm500/1000 Blow Molding Machine for Large Pallets, Industrial Plastic Products, and Storage Solutions

Product Description

Product Parameters

Model	Unit	BM30	BM50	BM100	BM160
Max product volume	L	30	50	100	160
Dry cycle	Pc/h	600	450	360	300
Die head structure	Accumulating type	Accumulating type	Accumulating type	Accumulating type	Accumulating type
Main screw diameter	mm	80	90	100	100
Max plasticizing capacity(PE)	kg/h	120	180	190	240
Driving motor	KW	37	45	55	90
Accumulating volume	L	5.2	6.2	12.8	18
Oil pump motor power	KW	22	30	30	30
Clamping force	KN	280	400	600	800
Space between platen	mm	400-900	450-1200	500-1300	500-1400
Platen size W*H	mm	740*740	880*880	1020*1000	1120*1200
Max.mould size	mm	550*650	700*850	800*1200	900*1450
Heating power of die head	KW	20	28	30	30
Machine dimension L*W*H	m	4.3*2.2*3.5	5.6*2.4*3.8	5.5*2.5*4.0	7*3.5*4.0
Machine weight	T	12	13.5	16	20
Total power	Kw	95	110	135	172

Detailed Photos

Product Description
Product Application: Designed for producing a wide variety of large plastic pallets and industrial-grade storage solutions. Perfect for logistics, warehousing, and heavy-duty transportation needs, ensuring durability and precision.
Key Features: Flexible Applications: Produces various pallet designs for logistics, warehousing, and industrial use. High Productivity: Advanced high-output extrusion system for fast and consistent production. Enhanced Precision: Accumulating die head technology guarantees even material flow and quality. Energy Efficiency: Integrated hydraulic servo control system for lower energy consumption and efficient operation. Customizable Options: Includes features like bottom sealing, product ejection, and core-pulling to adapt to specific production requirements. Company Profile

---
