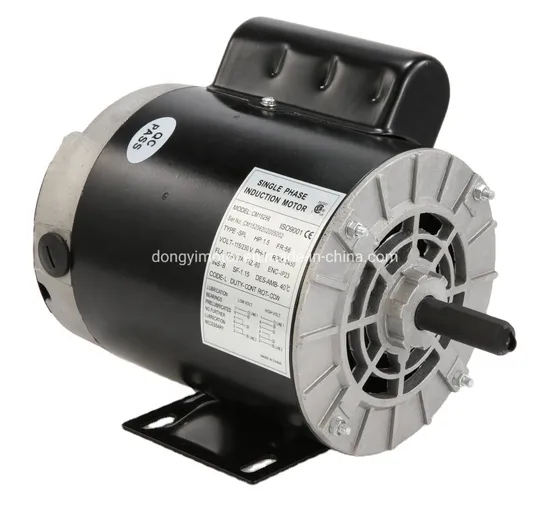

1HP ~ 10HP Specially Designed Air Compressor Single Phase Motor

Product Description

Product Description
NEMA Air Compressor Motors
Standard Features:
---------------------------------------------------------------------
1HP ~ 10HP
3600/1800 RPM
2/4 Pole
56 & 143/5T & 182/4T & 213/5T
IP23 Protection
Class B Temp Rise
Class F Insulation
Rolled Steel & Cast Iron Construction
Removable Universal Base (56,143/5T)
Overload Protection with Manual Reset
Capacitor Start / Capacitor Run

General CM Serie Motor 2 Pole
MODEL	HP	Voltage	HZ	POLES	RPM	Frame	Insulation Class	Enclosure Type	Service Factor	ROT	Shell Material
CM01256	1	115/230	60	2	3600	56	F	ODP	1.0	CCW	Steel Shell
CM15256	1.5	115/230	60	2	3600	56	F	ODP	1.0	CCW	Steel Shell
CM02256	2 SPL	115/230	60	2	3600	56	F	ODP	1.0	CCW	Steel Shell
CM03256	3SPL	115/230	60	2	3600	56	F	ODP	1.0	CCW	Steel Shell
CM05256	5SPL	208-230	60	2	3600	56	F	ODP	1.0	CCW	Steel Shell
1203T-ODP	3	208-230	60	2	3600	143/5T	F	ODP	1.0	CCW	Steel Shell
1205T-ODP	5	208-230	60	2	3600	143/5T	F	ODP	1.0	CCW	Steel Shell
Newly Designed Type 1
MODEL	HP	Voltage	HZ	POLES	RPM	Frame	Insulation Class	Enclosure Type	Service Factor	ROT	Shell Material
CM032182T	3	208-230	60	2	3600	182/4T	F	ODP	1.15	CW/CCW	Steel Shell
CM034184T		208-230	60	4	1800	182/4T	F	ODP	1.15	CW/CCW	Steel Shell
CM052184T	5	208-230	60	2	3600	182/4T	F	ODP	1.15	CW/CCW	Steel Shell
CM054184T		208-230	60	4	1800	182/4T	F	ODP	1.15	CW/CCW	Steel Shell
CM722184T	7.5	208-230	60	2	3600	182/4T	F	ODP	1.15	CW/CCW	Steel Shell
CM724215T		208-230	60	4	1800	213/5T	F	ODP	1.15	CW/CCW	Steel Shell
CM102215T	10	208-230	60	2	3600	213/5T	F	ODP	1.15	CW/CCW	Steel Shell
CM104215T		208-230	60	4	1800	213/5T	F	ODP	1.15	CW/CCW	Steel Shell
Newly Designed Type 2 with Fan
MODEL	HP	Voltage	HZ	POLES	RPM	Frame	Insulation Class	Enclosure Type	Service Factor	ROT	Shell Material
CMF032182T	3	208-230	60	2	3600	182/4T	F	ODTF	1.15	CW/CCW	Steel Shell
CMF034184T		208-230	60	4	1800	182/4T	F	ODTF	1.15	CW/CCW	Steel Shell
CMF052184T	5	208-230	60	2	3600	182/4T	F	ODTF	1.15	CW/CCW	Steel Shell
CMF054184T		208-230	60	4	1800	182/4T	F	ODTF	1.15	CW/CCW	Steel Shell
CMF722184T	7.5	208-230	60	2	3600	182/4T	F	ODTF	1.15	CW/CCW	Steel Shell
CMF724215T		208-230	60	4	1800	213/5T	F	ODTF	1.15	CW/CCW	Steel Shell
CMF102215T	10	208-230	60	2	3600	213/5T	F	ODTF	1.15	CW/CCW	Steel Shell
CMF104215T		208-230	60	4	1800	213/5T	F	ODTF	1.15	CW/CCW	Steel Shell
Newly Designed Type 3 with Cast Iron Shell
MODEL	HP	Voltage	HZ	POLES	RPM	Frame	Insulation Class	Enclosure Type	Service Factor	ROT	Shell Material
CMW032184T	3	208-230	60	2	3600	182/4T	F	ODP	1.15	CW/CCW	Cast Iron
CMW034184T		208-230	60	4	1800	182/4T	F	ODP	1.15	CW/CCW	Cast Iron
CMW052184T	5	208-230	60	2	3600	182/4T	F	ODP	1.15	CW/CCW	Cast Iron
CMW054184T		208-230	60	4	1800	182/4T	F	ODP	1.15	CW/CCW	Cast Iron
CMW722184T	7.5	208-230	60	2	3600	182/4T	F	ODP	1.15	CW/CCW	Cast Iron

Company Profile
Company Profile and Production Workshop
Taizhou Dongyi Electric Motor Co., Ltd. Locates at Taizhou City Zhejiang China, which is close to Yong-guan expressway Wenling East exit, also close to the international famous import and export ports Ningbo and Shanghai, which is very convenient to all transportation.
Wenling Sihai Motor Factory who was one division of Taizhou Dongyi Electric Motor in the past, specializes in researching, developing and manufacturing NEMA standard electric motors and IEC standard three & single phase motors.At Sihai Motor, our devoted engineering team and production team are now turning out a variety of electric motor lines with cutting-edge technologies, NEMA premium efficiency motors from fractional 42 frame motors to 587 frame size, ranging from 1/3hp to 500 HP; NEMA ODP& TEFC, Single & Three Phase with casting iron, rolled steel shell, stainless steel motor materials electric motors. As well as IEC metric motors 80 though 355 frame size.We have been enjoying a good credit and reputation. For any inquiries, questions or suggestions, please feel free to contact us. Looking forward to cooperating with you in near future!
Company Certification
Packaging & Shipping
About the packaging, due to the weight and size of the motor, we have several packaging options, Please see the following packing information below:
There are two ways of carton packing, foam and EPE Foam. EPE Foam is a new buffering and joltproof packing material with good heat resisting, damp proof, wear preventing and anti-corroding function. Customers can choose for themselves.
Product Application
, Applications:
fans, pumps, machine tools,
compressors, conveyors,
machinery and other
general machinery equipment,
can also be in the petroleum,
chemical, steel, mining, etc.
Recommend Products

FAQ
Q: What is the payment terms?
A: T/T is available. (30%deposit before production, 70%balance before shipping)
Q: What is your delivery time?
A: Within 25-30 days after receiving deposit.

Q: Do you offer OEM service?
A: Yes. We accept OEM service.
Q: Where is your loading port ?
A: Ningbo Port, Shanghai Port, China.
Q: What's your MQQ?
A: Our MQQ is 10 Sets.
Q: How do you pack your products?
A: Small motors are packed in carton or plywood cases, and large motors in wooden cases.

---
