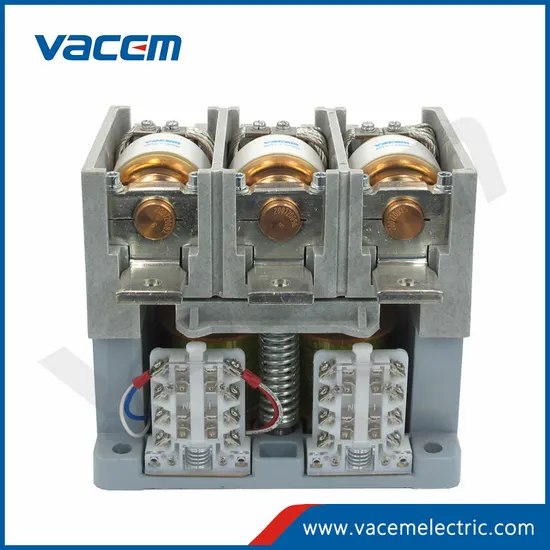

1.14kv 400A Low Voltage Vacuum Contactor for Capacitor

Product Description

General description This series of vacuum contactors is designed to cater to power networks with an AC frequency of 50Hz. The main circuit rated voltage is 1140v, and the rated current can go up to 630A. It is ideal for making, breaking, frequently starting, and controlling AC motors. Additionally, it can be used to form a magnetic starter with a variety of protection devices, such as the JDB electronic integrated protector, JR9 type over current protection device, and resistance-capacitance absorber. This vacuum contactor is particularly suitable for forming an anti-explosion magnetic starter.
The contactor conforms to IEC 60947-4-1, GB/T 14048.4, and JB/TN 7122 standards. Its main performance indicators have reached the international level, making it a reliable and efficient choice for various applications. This product is available in two operation mechanism types: coil operation mechanism type and permanent magnet operation mechanism type. The coil operation mechanism type is the most commonly used, but customers can choose the suitable type according to their specific application needs. Main technical parameter

Item	Unit	63A	80A	125A	160A	250A	400A	630A
Main circuit rated voltage	kV	1.14
Main circuit rated current	A	63	80	125	160	250	400	630
Main circuit making capacity	A/100times	630	800	1250	1600	2500	4000	6300
Main circuit breaking capacity	A/100times	504	640	1000	1280	2000	3200	5040
Main circuit P.F. withstand voltage	kV	10
Electrical life AC3	Ten-thousand times	60
Electrical life AC4	Ten-thousand times	6
Mechanical life time	Ten-thousand times	100
Rated operating frequency AC3	times/h	600
Rated operating frequency AC4	times/h	120
Short-time operating frequency(20s)	times/h	2000
Clearance between open contacts	mm	1.5±0.1	1.8±0.1			2.0±0.1		2.2±0.1
Over travel	mm	0.8±0.1	1.0±0.1			1.0±0.1		1.0±0.1
Contact circuit P/F. withstand voltage	kV	2
Closing time	ms	≤100
Opening time	ms	≤80
