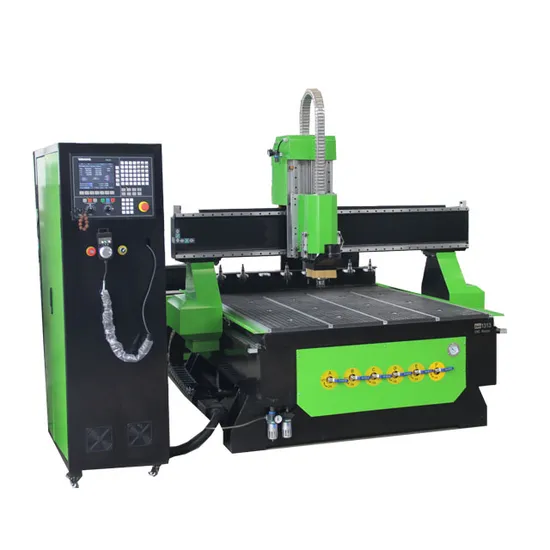

Automatic Tools Changer 3D Wood Carving CNC Router Machine for Sale

Product Description

Automatic 3d wood carving cnc router machine for sale
Parameter

Descriptions	Parameters
Modle	DW1325
Working area	1300*2500*200mm
Control system	NK260 control system
Spindle	3.0/ 5.5kw /water cooling spindle or air cooling spindle
Spindle speed	0-24000RPM
Motor	leadshine stepper motor or yaskawa servo motor
Driver	leadshine or yaskawa
Inverter	5.5kw/7.5KW Fuling Inverter
Table surface	T-slot and vacuum working table with 4 or 6 zones
Structure	New type thicker and bigger heavy duty welded frame and gantry
Voltage	220v, 1ph, 50Hz (380v for optional)
Lubrication system	Manual lubrication system (automatic for optional)
Transmission	X,Y rack and pinion drive; Z Taiwan TBI ball screw Taiwan HIWIN linear square rail 20# for X,Y,Z axis
Traveling speed	32m/min
Working speed	20m/min
Collet	ER25
Tool sensor calibration	Simple tool sensor calibration
Optional	CW3000 Industrial Chiller

Samples
Application
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
OUR CERTIFICATE AND EXHIBITION


Our service
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
