High Precision Slitting Line for Thick Plate

US$150,000.00-300,000.00 1 Set (MOQ)

Basic Info.

Model NO.
ESL-6X1850
Power Source
Electric
Feature
Automation
Certification
CCC, ISO9001, CE
Warranty
12 Months
Customized
Customized
Advantage
Use Widely
Condition
New
Application
Mechinery&Hardware
Work Method
Flat Knife Slitting
Structure
Cutting Part
Packaging
Film
Applicable Process
Process Materials
Classification
Metal
Suitable Substrates
Coil, Plate, Sheet
Packaging Material
PVC
Processing Material
Cold/Hot Rolled, Galvanized, Stainless, Carbon Steel
Processing Thickness
1-6mm
Processing Width
900-1850mm
Slitting Strip Number
6-30
Slitting Speed
30-100m/Min
Uncoiling Weight
30t
Certificate
Ce, ISO9001
Guarantee Period
12 Months
Transport Package
Seaworthy
Specification
CE, ISO9001
Trademark
Eagle
Origin
Jinan, Shangdong
HS Code
8462311000
Production Capacity
60 Sets/Year

Product Description

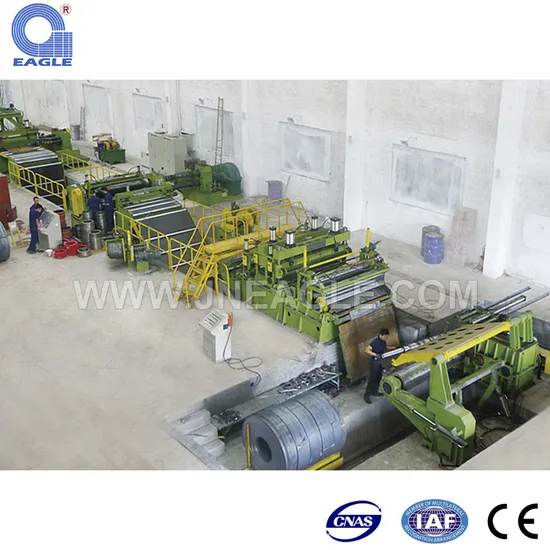

Slitting line ESL -6x1850
It is composed of the following:
1. entry coil car,
2. uncoiler,
3. slitter,
4. scrap coiler,
5. tension unit,
6. recoiler, etc.

Our slitting machine carries out slitting on cold or hot rolling carbon steel, tinplates, stainless steel, and other kinds of metal that have coated surfaces. It is a useful slitting machine, widely used during the processing of home appliances, automobiles, hardware, steel products and more
Advantages:
1. High cutting quality
2. High utilization rate of materials
3. Stepless cutting speed regulation
Uncoiling Unit

1. Several coils can be pre-placed on the loading station to improve working efficiency.
2. This uncoiling unit of our slitting line adopts a hydraulic collapsible drum, which does no harm to the sublayer of the material. It is capable of carrying out tensile uncoiling or manual material unloading, which effectively prevents the material from deflecting and scraping.
3. Both single-head and double-head type uncoiling units are available.

Slitting Unit

1. The slitting head arbors are fixed in eccentric sleeves. The slitting angle remains unchanged if the blade has just been polished.
2. This slitting line has two slitter heads. While one is running on line, kives setting up can be done on the other, which can greatly eliminate production down-time. As a result, this slitting line carries out slitting and blade changing simultaneously. This greatly increases the working efficiency.
3. Hydraulic locknuts could be used for higher blade positioning precision.

Tension Unit
1. Two pre-separation devices are fitted to this tension unit. The disengaging shaft could be transversely removed for faster switching of separating plates.
2. It has a friction type tensile working table. The adjustable tensile could be offered by hydraulic power or pneumatic power.
3. Our slitting line could also be equipped with a roller type tightening machine, which is suitable for materials of coated surfaces because it does not harm the coated surfaces.

Coiler

1. Our slitting line could be fitted with a seamless hydraulic expansion coiler, which does not damage the sub-layer of the material.
2. The material clamping device has stress reducing characteristics. The roundness of the winding drum remains unchanged for plates of different thickness.
3. It carries out firm, dense and neat coiling.
Parameters of Slitting Line
Model/ Items
Thickness (mm)
Width (mm)
Slitting Number
Slitting Speed m/min
Coil Weight (ton)
ESL-0.5x1000
0.15-0.5
300-1000
12
50-150
7
ESL-0.5x1300
0.15-0.5
500-1300
24
50-150
7
ESL-2X650
0.3-2
200-650
10-30
50-150
7
ESL-2X1000
0.3-2
300-1000
10-30
50-150
7/15
ESL-2x1300
0.3-2
500-1300
12-30
50-180
7/15
ESL-2x1600
0.3-2
500-1600
12-30
50-180
7/15
ESL-3x1600
0.3-3
500-1600
8-30
50-180
15
ESL-3x1800
0.3-3
900-1800
8-30
50-180
20
ESL-4x1600
1-4
900-1600
6-30
50-120
20
ESL-6x1600
1-6
900-1600
6-30
30-80
30
ESL-10x2000
2-10
900-2000
5-30
30-50
30
ESL-12x2000
3-12
900-2000
5-30
20-40
30
ESL-16x2000
3-16
900-2000
5-30
20-40
40


Transaction procedure:
Inquiry - Project - Sign - Production - Inspection - Payment - Transportation - Installation& Commissioning - Guaranty
Jinan Eagle CNC Machine Co., Ltd (briefly JEM), located in Jinan city, Shandong Province, China, was founded in 2003. It is mainly engaged in developing and manufacturing of Cut to Length Line, Slitting Line, Rotary Shear, Slitting and Cut to Length Combined Line, Leveling Machine, Tension Leveler and so on. Our products are widely used in transfomer, motor, household appliance, automobiles, hardware, steel industries, etc. It can be used for processing cold and hot rolled steell, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminium, copper and other metals.
Domestic customers include First Automotive Works (FAW), Second Automotive Works, Great Wall Automobile, Bao Steel, Anshan Steel, Handan Steel, Midea Group etc, and many of coil processing centers. Internationally, our products have also been installed in Europe, South America, Africa, Southeast Asia and so on.
