Suntech High Quality China Stelel Wire Drawing Machine

US$80,000.00-100,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
LW710
Type
LZ Straight-Line Metal Drawing Machine
Usage
Wire, Rope Wire, Prestressed Steel Wire, Standard Parts
Metal Material
Steel
Outlet Diameter
0.5-4.5mm
Max.Inlet Wire Dia.
10mm
Block Dia.
710mm
Max. Number of Block
9
Certification
ISO
Condition
New
Material
Low Carbon Steel Wire
Quantity of Block
Max 12
Way of Drawing
Straight Wire Drawing
Transport Package
Wooden Pallet
Trademark
SUNTECHMACH
Origin
China
Production Capacity
100 Set/Year

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
100.000kg

Product Description


Product Description

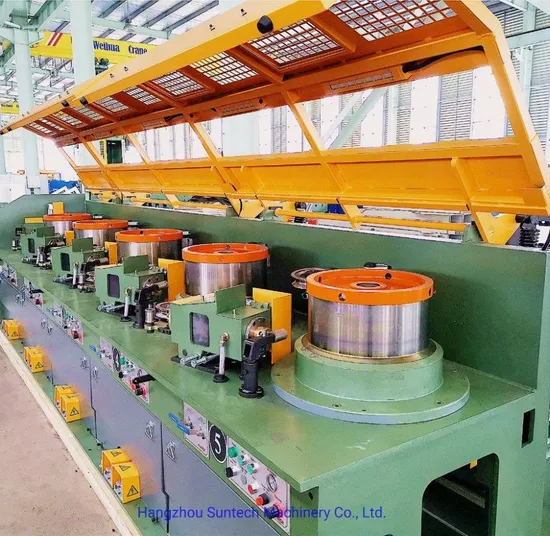

The straight wire drawing machine series of our company have absorbed the advanced advantages from both at home and broad in the machinery design process. Our machine have all kinds of design and configurations according to the different finished products and different request from clients, which makes us in the leading position of concerning the product characterisitics for user. It is applicable to drawing spring steel wires, tyre rib steel wires, steel wires for ropes, optical fiber steel wires, CO2 shield welding wires, flux cored electrodes for air welding, alloy and stainless steel wires, aluminum clad wires, under-relaxation pre-stressed steel wires and so on.
Technical parameter
Model (Block diameter)
 300
 350
 400
 450
 500
 560
 600
 700
 800
 900
 1200
Strength of inlet wire (MPa)
 ≤1250
Number of Block
 2~11
 2~11
 2~11
 2~12
 2~12
 2~12
 2~12
 2~9
 2~9
 2~9
 2~9
Maximum diameter of inlet wire (mm)
 2.8
 3.5
 4.2
 5
 5.5
 6.5
 8
 10
 12.7
 14
 16
Minimum diameter of outlet wire (mm)
 0.5
 0.6
 0.75
 1
 1.2
 1.4
 1.6
 2.2
 2.6
 3
 5
Highest drawing speed (m/s)
 ~25
 ~20
 ~20
 ~16
 ~15
 ~15
 ~12
 ~12
 ~8
 ~7
 ~6
Drawing power (kw)
 7.5~18.5
11~22
 11~30
 15~37
 22~45
 22~55
 30~75
 45~90
 55~110
 90~132
 110~160
