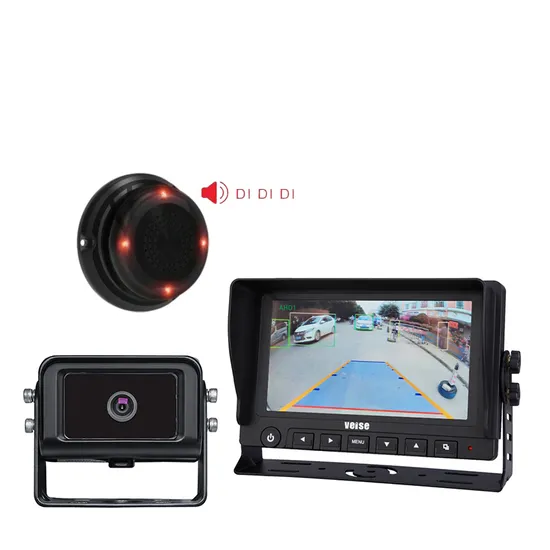

HD Wireless IP69K Waterproof Monitor Rear View Camera System
| |
| HD Car Monitor(MHD-761) |
| Color LCD Display | 7-inch IPS screen |
| Resolution | 1024(H) X 600(V)dot |
| Video Input | Supports up to 2 channels of AHD1080P/ 720P/CVBS video signal input |
| Picture Mode | Single Channel Switching |
| Color System | PAL/NTSC (AUTO) |
| Brightness | 600cd/m2 |
| Load Dump | ISO16750-2 standard (24V system Us=174V, Ri= 4Ω, td=350ms) |
| Vibration Class | 5G (in line with GB-T2423056-2006 standard) |
| Operating Temperature | -20ºC to +70ºC |
| Storage Temperature | -30ºC to +80ºC |
| Operating Voltage | DC11-32V |
| Dimensions | (L x W x T) (218 x 149 x 82mm) |
| HD Car Waterproof AI Camera (CHD-122MAI) |
| Image Sensor | 1/2.9 Color Cmos |
| Effective Pixels | 1920(H) X 720(V) |
| Horizontal Resolution | 1080P |
| Viewing Angle | 100° |
| Night Vision Mode | full color star |
| Detection Function | Pedestrian/vehicle detection and warning |
| Alarm I/O | External buzzer (with switch volume adjustable) |
| Waterproof Level | IP69K |
| Operating Voltage | DC12V±10% (powered by the monitor) |
| Operating Temperature | -20ºC to +60ºC |
| Storage Temperature | -30ºC to +70ºC |
| Vibration Class | 5G (in line with GB-T2423056-2006 standard) |
| Dimensions | 82(W)x73(H)x68(D) mm |
| HD video signal cable (XC-HD0004-B-15M-4X) |
| Interface | 4 core aviation male and female header |
| Length | 15 meters |
