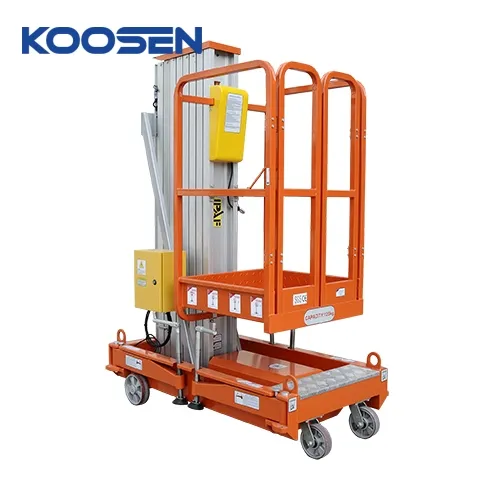

Lightweight Durable Design Scissor Lift Single Mast 8m Awp Mast Lift Platform

Product Description

Product Description
GTWY10-1000/GTWY9-1000/GTWY8-1000/GTWY6-1000
Main spec.
Working height:12.00m,10.00m and 8.00m,6.00m
S.W.L:130kg
Important features
self-leveling outriggers with sensor system, LED display, safe and reliable
Emergency lowering system
AC/DC Power system optional
Cylinder holding valve
Product Parameters

Size
Model	AWP10-1000	AWP9-1000	AWP8-1000	AWP6-1000
Working height	12.00m	11.00m	10.00m	8.00m
Platform Floor Height	10.00m	9.00m	8.00m	6.00m
Overall Length	1.45m	1.45m	1.34m	1.34m
Overall Width	0.85m	0.85m	0.85m	0.85m
Overall Height	2.00m	2.00m	2.00m	2.00m
Outrigger Footprint(L/W)	1.93m/1.77m	1.92m/1.77m	1.70m/1.67m	1.70m/1.67m
Platform Size(Length/Wide)	0.60m×0.55m	0.60m×0.55m	0.60m×0.55m	0.60m×0.55m
Ground Clearance	0.05m	0.05m	0.05m	0.05m
Wheel Base	1.12m	1.12m	1.12m	1.12m
Performance
Model	AWP10-1000	AWP9-1000	AWP8-1000	AWP6-1000
S.W.L	130kg	130kg	130kg	130kg
Max. Occupants	1	1	1	1
Up/Down Speed	88/82sec	80/76sec	75/71sec	55/51sec
Tyres(Back Wheels)	7in	7in	7in	7in
Tyres(Front Wheels)	6in	6in	6in	6in
Power
Model	AWP10-1000	AWP9-1000	AWP8-1000	AWP6-1000
Lifting Motor(AC)	110-230VAC/1.10kW	110-230VAC/0.75kW	110-230VAC/0.75kW	110-230VAC/0.75kW
Lifting Motor(DC)	12VDC/0.80kW	12VDC/0.80kW	12VDC/0.80kW	12VDC/0.80kW
Betteries	2×12V/80Ah	2×12V/80Ah	2×12V/80Ah	2×12V/80Ah
Integrated Charger	24V/12A	24V/12A	12V/15A	12V/15A
Weight
Model	AWP10-1000	AWP9-1000	AWP8-1000	AWP6-1000
Weight	430kg/460kg	400kg/430kg	378kg/408kg	325kg/355kg

Detailed Photos
Recommand

Exhibition

Packaging & Shipping
FAQ
1.Q:How about your delivery time?
A: 5 days to ship if in stock, 25 days if it need to re-produce.
2.Q:Why should I choose from you?
A:Koosen have rich experience to choose suitable equipment to you,as we have been in this line over 13years.Moreover,our products are highly competitive,both in quality and price.
3.Q:What about your warranty time?
A:Generally,the product warranty period is 12 months for key components since you receive it..
4.Q:What should we do if there have quality problems?
A:Pls send picture or video about the broken part to us,we can provide technical support and free spare part of key parts within 12 moths. 5.Q:What payment methods do you support?
30% deposit and 70% balance will be paid in 3 working days after get copy B/L. 6.Q:What is your trade terms?
We have EXW, FOB, CIF, CFR for you to choose, and we can change according to your requirements. 7.Q:Are you factory? Yes,we have our own factory. 8: Can I visit your company? Of course at anytime. 9, Do you support customization? Yes.We not only provide standard products,but also support customized products.

---
