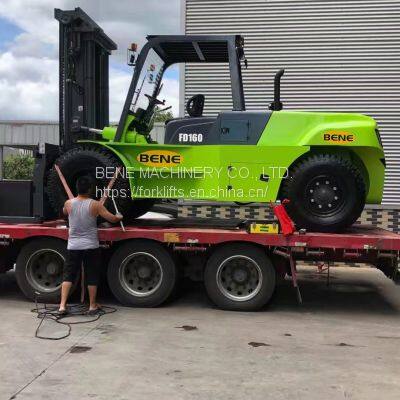

Chinese 16 ton to 18 ton heavy diesel forklift VS Kalmar 16 ton forklift HELI diesel forklift

Product Details

Product Description

Product Description
Chinese 16 ton to 18 ton heavy diesel forklift VS Kalmar 16 ton forklift HELI diesel forklift
Engine: 16 ton diesel forklift truck use Yuchai Engine, low oil consumption, high quality turbocharged engine, good power performance, big torque reserves, has strong power, energy conservation and environmental protection
Steering axle: 16 ton diesel forklift truck adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable
Transmission & torque convert: 15 ton diesel forklift truck matched with imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation
Hydraulic system: 16 ton diesel forklift truck has double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Pipeline: high pressure oil line impact resistance, wear resistance and long service life
Tyre: sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded - safe and reliable
Fork: use famous brand Fork, with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity
Mast: 3.5-6m box-type internal-external mast, special all-round roller bearings, increase lifting performance

Item		Specification		Unit
General	1	Model			FD160
	2	Power Type/model			Diesel
	3	Rated Capacity		Kg	16000
	4	Load Center		mm	900
Dimensions	5	Lift Height		mm	3500
	6	Fork Size(LxWxT)		mm	2000×220×90
	7	Fork Spread(outside)(Min./Max)		mm	540/2260
	8	Mast Tilt Angle(F/R)		deg	6°/12°
	9	Fork Overhang		mm	800
	10		Length without forks	mm	5400
	11		Overall Width	mm	2550
	12		Mast Lowered Height	mm	3460
	13		Overhead Guard Height	mm	3300
	14	Outer turning Radius		mm	5050
Performance	15	Speed(Unload/Load)	Travel	km/h	30/26
	16		Lifting	mm/s	300
	17	Max.gradeability(Load)		%	20
	18	Max.drawbar pull(Load)		KN	120
	19	service Weight		kg	22000
Wheels&Tires	20	Tire	Front		4×12.00-24-18PR
	21		Rear		2×12.00-20-18PR
	22	Tread	Front	mm	1850
	23		Rear	mm	2130
	24	Wheelbase		mm	3600
	25	Ground Clearance(Under mast)		mm	260
Power & Transmission	26	Battery	Voltage/Capacity(5HR)	VA/h	2X12/120
	27	Engine	Model		YC6J175-T302
	28		Manufacture		YUCHAI
	29		Rated Output	Kw	129
	30		Rated Torque	N.m	710
	31		No.Of Cyinder		6
	32		Bore*stroke	mm	102/120
	33		Displacement	L	6.5
	34	Transmission	Type		Fluid Torque Converter
	35		StageFWD/RVS		2/1
	36	Operating Pressute		Mpa	19

---
