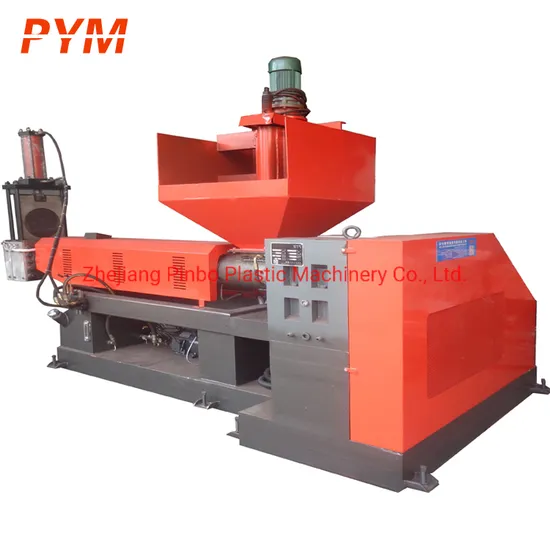

Factory Supplier Sj-90 Plastic Recycling Machine

Product Description

1.Recycling machine is suitable for regeneration and granulation of waste plastics, as HDPE, LDPE and PP, etc. Its equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control.
2.The granulating crusher uses adjustable speed motor, pelleting with and extruding machine at the same discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance and favorable economic benefit.
3. It adopt latest advanced technology , design with simple structure and easy to operate,high production capacity, economy energy consumption, reliable performance .
4.The material component of each machine on our products with high quality ,ensures whole washing line with long service life time.
Main technical parameters:

The Main/ First stage	1. Screw and barrel Screw dia150mm, L/d 22:1, one set, based on 38CrMoALa material(HV >=950-1100) 2. Gearbox ZLYJ 280 3. Motor 45KW, the brand is Huadong, made in Shanghai, quite a good brand in China 4. Inverter 45KW, the brand is Painier, quite a good brand in china 5. Screen changer with hydraulic pump,250mmx250mm
The Auxiliary/ Second stage	6. Screw and barrel Screw dia130mm, L/d 10:1, one set, based on 38CrMoALa material(HV>=950-1100) 7. Gearbox ZLYJ 200 8. Motor 18.5KW, the brand is Huadong, made in Shanghai, quite a good brand in China 9. Inverter 18.5KW, the brand is Painier, quite a good brand in china 10. Screen changer with hydraulic pump, 250mmx250mm
The other parts:	11. Cutting machine in speed change, 4kw ,one piece, (the knife is made in alloy ) the knife is 200mm width, with 24 pieces 12. Water tank, one piece, in stainless 13. Electrical box, one piece, the brand is Chint, famous brand in China 14. Container, one piece 15. heating ring: ceramic heating .

FAQ:
Q1:Main Advantage?
A:1. We have a series of this recycling line with different production capacity, our customer have a wide options, of course, we can special design it according to customer's demands.
2. Once we have a chance to cooperate together, we would supply you high quality products and supply long-term technical support & perfect after-sales service.

Q2.Guarantee time and after-sale?
one year guarantee time, after one year , we have professional after-sales department providing best service if any problems.
OFFICE:
Zhejiang pinbo plastic machinery co.,ltd is located in ruian wenzhou city with brand of PYM(Former Ruian yumin machine screw co.ltd since 1988). The company is specialized in making screw barrel, gearbox zlyj series, t die, filter and extruder machine. It has become one of the largest supplier of main parts in Ruian city which is the basement of plastic machines.

It owns many computer-control CNC milling machines in length 8000mm In Fanuk series,18000mm length deep hole drilling
machine and other advanced equipment. Long time nitriding treatment
for 7days and nights greatly ensure the hardness and lifetime of its
products. Meanwhile, the company and its products have passed assessment by SGS company, Bureau of Veritas, Tuv and Ce certificate.
If you are satisfied with our products please contact me at any time. We will reply you as soon as possible, we will be the best technology and service to cooperate with you.

---
