New Tech Dual Spindle Swiss CNC 5 Axis T

Product Description

Product Description

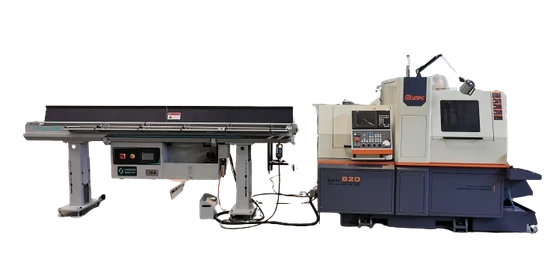

Introducing the remarkable New Tech Dual Spindle Swiss CNC Turning Lathe Machine, 2024 Model. Engineered for excellence, this machine embodies state-of-the-art technology and innovation, promising unmatched precision and performance for your manufacturing needs. -The B20 is a sophisticated 5-axis sliding headstock lathe, meticulously crafted with dual spindle functionality. It's designed to elevate your production capabilities through its unparalleled precision and efficiency.
-With the ability to operate the Main Spindle and Sub Spindle simultaneously, this machine ensures optimal productivity and seamless processing. It delivers the robustness you need to handle complex machining tasks with ease.
-Expertly designed for processing profile diameters of ≤ Φ 20mm, this lathe machine offers remarkable versatility and accuracy, making it a valuable addition to any high-precision manufacturing operation.
-This machine is particularly ideal for large-scale, multi-variety production. It excels in high-precision machining of slender shaft parts with a large length-to-diameter ratio and intricate, small special-shaped components, meeting diverse industrial demands.
Product Parameters

Power	Rated voltage	Three-phase AC 380V
	Rated frequency	50HZ
	Total Input Power	15kW
CNC System	LNC	T6850
	Minimum Set Unit	0.001mm
	X Axis Pulse Equivalent	0.0005mm
	Z Axis Pulse Equivalent	0.001mm
	Cutting Speed	1--4000mm/min
	X Axis Rapid Feed Speed	28000mm/min
	Y Axis Rapid Feed Speed	28000mm/min
	Z Axis Rapid Feed Speed	28000mm/min
Main Spindle	Maximum Bar Diameter	Φ20mm
	Main Spindle Through-hole Diameter	Φ21mm
	Main Spindle Center Height from Ground	1050mm
	Main Spindle Speed	0-5000r/min
	Main Spindle Motor Power	5kW
Sub Spindle	Maximum Clamping Diameter	Φ20mm
	Sub Spindle Speed	0-5000r/min
	Sub Spindle Motor Power	2kW
Travel	X1 Axis Travel	140mm(Diameter)
	Y1 Axis Travel	300mm
	Z1 Axis Travel	330mm
	X Axis Servo Motor Power	0.75kW
	Y Axis Servo Motor Power	1kW
	Z Axis Servo Motor Power	1kW
	Guide Rail Form	Linear Guide Rail

Travel	X2 Axis Travel	500mm(Diameter)
	Z2 Axis Travel	200mm
	X2 Axis Servo Motor Power	1kW
	Z2 Axis Servo Motor Power	1kW
Cooling System	Cutting Oil Motor Power	0.48kW
	Cooling Box Capacity	250L
Lubrication System	Motor Power	35W
	Capacity	2L
Main Spindle Tools	12*12Square Tool+∮20Hole Cutter	6pcs+4pcs
Sub Spindle Tools	∮16Hole Cutter	1pc
	∮20Hole Cutter	1pc
	ER16 Tool Rest	2pcs
	12*12Square Tool	1pc
Machine Size	Length * Width * Height	2560*1440*2000
	Machine Weight	2100KG

B20 Configurations
Item	Specification	Origins
CNC System	LNC T6850	Taiwan
Main Spindle		Baoyu BYSK
Main Spindle Motor	5kW Absolute Value Servo Motor	Inovance+ Lines
Sub Spindle Motor	2kW Absolute Value Servo Motor	Inovance+ Lines
X1 Axis Motor	0.75kW Absolute Value Servo Motor	Inovance+ Lines
Y1 Axis Motor	1kW Absolute Value Servo Motor	Inovance+ Lines
Z1 Axis Motor	1kW Absolute Value Servo Motor	Inovance+ Lines
X2 Axis Motor	1kW Absolute Value Servo Motor	Inovance+ Lines
Z2 Axis Motor	1kW Absolute Value Servo Motor	Inovance+ Lines
Screw Rod		Taiwan HIWIN/PMI
Guide Rail		Taiwan HIWIN/THK

Optional Configurations
Main Spindle Plus Side Power Head	Chuck(ER11+ER16)	2pcs+2pcs
	Power	0.75kW
	Speed of Rotation	5000r/min
Sub Spindle Plus End Face Power Head	Chuck(ER16)	4pcs
	Power	0.75kW
	Speed of Rotation	5000r/min
Servo Rotating Center Frame	Z-axis travel after adding rotating center frame	210mm
	Power	0.75kW

---
