Forestry Hydraulic Winch for Log Crane/ Log Trailer

Product Description

Product Description

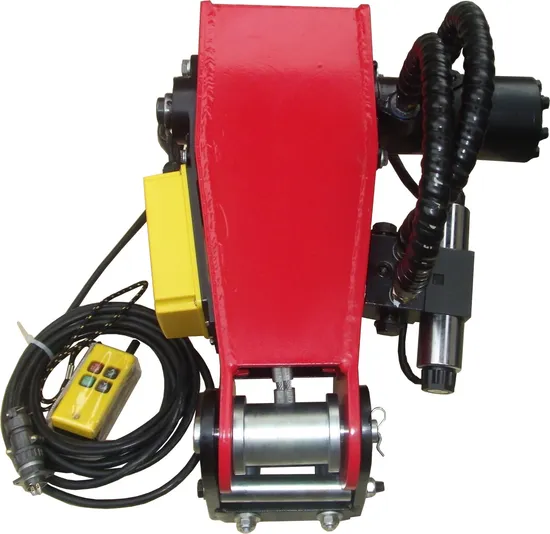

Hydraulic winch for log crane
Description of winch
HW 1700 Hydraulic winch for log splitter, Crane, Mini digger tractor, tractor viticulture Horticulture and many other applications And strutting up firewood for wood splitter Pull logs on trailer Pull out the rhizomes and trees When mounted winch on logging cranes and small excavators As a winch for small tractors and Vineyard tractors A sturdy steel construction with 3-sided mounting standard (left, right, rear) with M 12 threaded holes, this allows many options for attaching the winch (threads are cut and painted you need to be trimmed before using the tapping, because of the rust protection).
There is a 20 m long and 6 mm thick steel cable mounted.
Large sheave for long life of the steel rope

Model	HW1700	HW1700R
Maximum Traction(20Mpa)	1700kg	1700kg
Operating Pressure	16-20Mpa	16-20Mpa
Hydraulic Valve	Manual	Remote
Motor Displacement	400cc/380Nm	400cc/380Nm
Rope(D x L)	6x20mm	6x20mm
Rope Speed(50 L/min hydraulic oil)	45m/min	45m/min
Dimensions	Length: 500 mm Length with pendant 560 mm Front width: 120 mm Rear width: 180 mm Width of bearing: +50 mm Width motor: + 205 mm Height: 250 mm 560x435x250mm	Length: 500 mm Length with pendant 560 mm Front width: 120 mm Rear width: 180 mm Width of bearing: + 50 mm Width motor: + 205 mm Height: 250 mm 560x435x250mm
Weight	50kg	55kg

Model	SW170M	SW170R
Pulling Capacity	1700kg	1700kg
Tractor	15-30HP	15-30HP
3-Point Hitch	CAT 1	CAT 1
Operating Pressure	16-22Mpa	16-22Mpa
Hydraulic Valve	Manual	Remote
Motor Displacement	400cc/380Nm	400cc/380Nm
316 Cable(D x L)	6mmx18m	6mmx18m
Cable Speed(50 L/min hydraulic oil)	45m/min	45m/min
Dimensions	900x900x1300mm	900x900x1300
Weight	120kg	120kg

Model	FM1300
Traction force at 175 bar	1300kg
Line speed at 40 l/min	0,8m/sec
Operating Pressure	16-22Mpa
Hydraulic Valve	Manual
Motor Displacement	50cc/100Nm
Hydraulic Brake	2pcs
Length winch wire	35m
Diameter winch wire	6mm
Weight (including winch, cable, pulley)	52kg

Detial image
After sale
we will provide new electrical accessiores or parts in warranty during time.
(one year warranty period)
Company information
Rima is one of the leading manufacturers in the production of hydraulic equipments and forest machines, such as flail mower, firewood processor,log splitter, wood chipper, mini excavator, grapple etc. for compact utility tractors. Established in 2009, it has built a strong cooperation with worldwide customers by quick growing. Thanks to its flexibility and attention to the customers' requests, the company has developed a wide range of products for gardening, farming and forest, even with possibility of adapting them to the needs of the final users.

---
