Quick-Release Electric Glass Lifter 400-1200kg

Product Description

Electric Glass Vacuum Lifter Glass Suction Cups Product Description
H&H Glass Machinery Small Vacuum lifting machine is a fast, safe and convenient automatic equipment. It uses the principle of vacuum adsorption and uses the vacuum pump as the vacuum source to generate a vacuum at the suction cup end, so as to firmly hold various workpieces (such as glass, iron plates, etc.) Pick up, and transport the workpiece to the designated position through the rotatable mechanical arm.Features and Advantages:1. Manually rotated 360° in the vertical side, and manually rotated 90° in the horizontal side, but taking and releasing by electric2. Both ends of the suction cup holder are retractable, suitable for occasions with large size changes3. Imported oil-free vacuum pump, valve4. Efficient, safe, fast and labor-saving5. Accumulator and pressure detection ensure safety6. Suction cup position adjustable and can be closed manually7.Usually copperated with bridge crane to use in glass deep processing and handling job, or with cantilever crane to use in glass curtain wall installation job.
Product Parameters

Items	Unit	HH-EGV-400X	HH-EGV-600X	HH-EGV-800X	HH-EGV-1000X	HH-EGV-1200X
Lifting Capacity	kg	400	600	800	1000	1200
Cup Qty	/	4	6	8	10	12
Single Cup Diameter	mm	300	300	300	300	300
Single Cup Capacity	kg	100	100	100	100	100
Rotation	/	360°manual rotate
Tilting	/	90° manual
Voltage	V	DC12
Charger	V	AC220/110 custom
Weight	kg	70	90	100	120	120
Sucker Frame Size	mm	850*750*300	1800*900*300	1760*1460*300	1900*1600*300	1900*1600*300
Extension Bar Length	mm	500
Control System	/	Integrated Control Cabinet and Wired Remote Control
Overall Size	mm	1230*910*390mm, packed by wooden box
Gross Weight	kg	97	110	123	150	163

Applications
Belift Brand Small Vacuum lifting machine is widely used in glass processing, glass loading and unloading, glass curtain wall, plastic sheet, sandwich panel, composite panel, steel plate, aluminum plate, copper plate, stone and other industries; it is suitable for various workpieces with relatively flat and dense surfaces and relatively regular shapes .

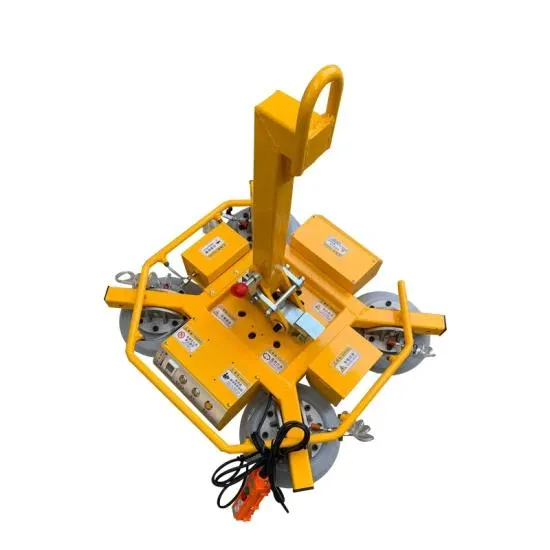

Detailed Photos


After Sales Service
1.Spare parts provided freely within quality warranty.2. Providing user's manual.3.Liftetime techinique support.4.24 hours telephone and Internet service
FAQ
1.How can customer buy parts once it break down?The scissor lift table adopt most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.2.How can customer repair the scissor lift table.One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.3.How long is the quality guarantee?One year quality guarantee.If it breask down within one year,we can send the parts free of charge to you.
Certificate:CE ROHS SGS ISO ETC.

---
