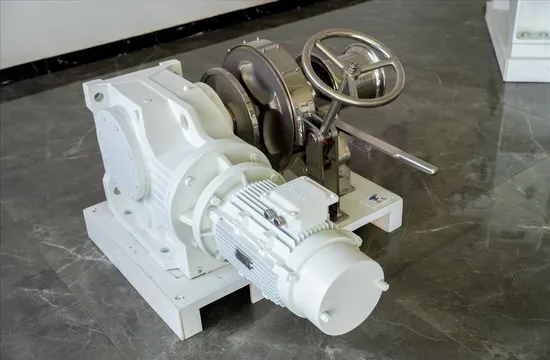

Premium Electric Single Sprocket Anchor Windlass for Safe Sailing

US$2,999.00 1 Set (MOQ)

Basic Info.

Model NO.
1
Material
Stainless Steel
Certification
LR, GL
Design
Delta Anchor
Weight (Kg)
<1000kg
Power Source
Electric
Certificate
ISO9001:2008
Application
Marine Outfitting
Marine Outfitting
as Per Your Requirements
Control
Local Control
Delivery
40 Days
OEM
Available
Transport Package
Standard Package
Specification
set
Trademark
YANGFAN
Origin
Jiangsu, China
Production Capacity
50000pieces/Year

Product Description

Marine anchor windlass is a machine that restrains and manipulates the anchor chain and/or rope on a boat, allowing the anchor to be raised and lowered.A notched wheel engages the links of the chain or the rope.A "trawl windlass" is a similar machine that restrains or manipulates the trawl on a commercial fishing vessel. The trawl is a sort of big fishing net that is wound on the windlass. The fishermen either let-out the trawl or heaves-up the trawl during fishing operations. A brake is provided for control and a windlass is usually powered by an electric or hydraulic motor operating via a gear train.
Specifications:
1) Drive: Hand/electric / hydraulic
2) Configuration: single in vertical / horizontal arrangement / double gypsies in horizontal
3) Chain size: 16 mm to 127 mm
4) Chain speed: complying with ISO requirements
5) Clutch: manually operated dog clutch
6) Brake: manually and hydraulic operated band brake.
7) Control: local control
8) Paint: as per your specifications.
Electric anchor winch windlass for marine use
Drive
Electric/Hydraulic /Manual Driven/ Diesel
Configuration
Single/Double Gypsies and Warping End
Gypsy Size
U2 or U3 from 17.5mm to 127mm
Working Load
1 Tones to 350 Tones
chains Speed
Complying With ISO/Classification Society Requirement
Clutch
Manual /Hydraulic Operated Jaw Clutch
Brake
Spring Applied Pneumatically or Hydraulic Released Band Brake
Release
Emergency Quick Release
Control
Local Control Console and remote Control Panel
Options
Drag Brake System ; Length and Tension Monitoring Systems Stainless Steel Brake Drum
Our Advantages:
1 High quality with competitive prices
2 Much experience in production and exportion
3 Special design for different clients.
4 Short delivery time if clients need urgently
Certificate: ABS, GL, LR, BV, KR,NK,DNV, CCS,etc..
