Paint Mixer Manufacturer Paint Mixing Machine Industrial High Speed Disperser for Paint Industry

Product Description

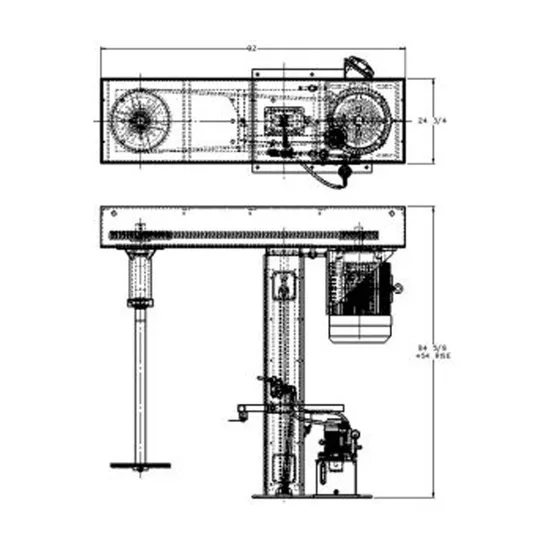

Product Description High Speed Disperser

Model	JCT-1.5	JCT-4	JCT-7.5	JCT-11	JCT-15	JCT-18.5	JCT-22	JCT-30	JCT-37	JCT-45
Motor power (kw)	1.5	4	7.5	11	15	18.5	22	30	37	45
Speed	0-1450rpm	0-1450rpm	0-1450rpm	0-1450rpm	0-1450rpm	0-1450rpm	0-1450rpm	0-1450rpm	0-1450rpm	0-1450rpm
Disc dia(mm)	120	200	230	250	280	300	350	400	400	450
Production capacity(L/batch)	≤60	≤200	≤400	≤500	≤700	≤800	≤1000	≤1500	≤2000	≤2000
Hydraulic power(kw)	0.55	0.55	0.55	0.55	0.55	0.75	0.75	0.75	1.1	1.1
Lifting(mm)	600	900	900	900	900	1100	1100	1100	1600	1600
Weight(kg)	400	600	800	1000	1100	1300	1400	1500	1600	1900

High-speed Disperser (Hydraulic Lifting) has dispersing and mixing function, which used for mass production; Equipment with inverter has stepless speed, can operate for a long time. It has stable running and low noise; Mixing disc is easy to be replaced, and can change different forms of dispersing discs according to production technology; Lifting structure adopts hydraulic cylinder as actuator, stable lifting, integrated hydraulic station, environmental and without leakage. It is an ideal grinding machine for materials with many varieties and many colors.
High speed disperser blades High speed disperser application scenarios
Recommended Products Company Profile
The JCT machinery has been producing industrial mixing, dispersing, kneading.blending and drying for over 15 years since 2006. We take 'make the mixingmore easier' as our belief and purpose in order to increasing the durability anoapplied in varius industries including cosmestics, chemical, plastics, batteryslurry, inks, pharmaceuticals, platics, adhesives, sealant, electronic pastes andglues etc.
We design and customise for every unique project by starting with 3D craftexposion, Our reliable team of engineers, sales managers, marketing andproduct analyzers are always ready for solving your inquiry and question onapplications.
JCT machinery now has over more than 10 product lines are ready for helpingyou find out best solution of your project including, silicone sealant, hot meltglue, battery slurry, rubbers and paint etc.
