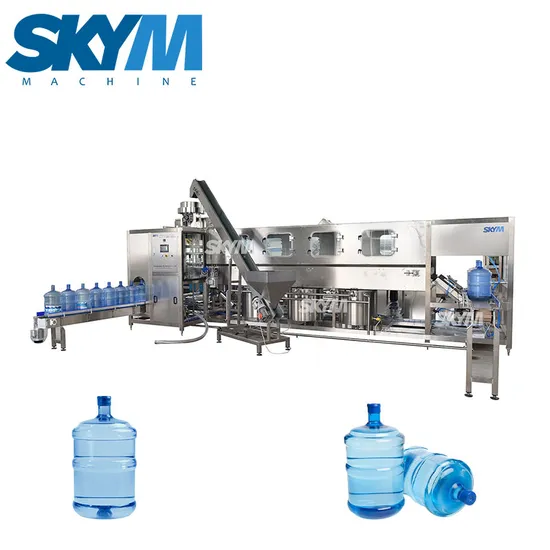

Fully Automatic 5 Gallon Ultra Clean 20 Liter Water Bottle Filling Sealing Machine

Product Description

QGF series full automatic barrel filling production line is composed of bottle washing machine, bottle filling machine and sealing mahcine into one body especially for the production of drinking water of 3 and 5 gallons.
1: It is an idea filling line to produce mineral water, distilled water and prified water. The whole line is made of superior stainless steel, anticorrosive and easy to clean.
2: Siemens electric components are adopted as main components. The world famous product of AirTAC is introduced in the air circuit systems.
3: The machine is compactly conformed to small occupation of land and high efficiency and reliable and stable quality and high automation.
4: Only two operators are needed for a line, which is wholly automatic barreled equipment with motor, electric unit and air three in one.
Technical Parameter

Model	QGF90	QGF150	QGF240	QGF300	QGF450	QGF600	QGF900
Filling Heads	1	1	2	2	3	4	6
Volume(L)	18.9	18.9	18.9	18.9	18.9	18.9	18.9
Barrel Size(mm)	ø270*490	ø270*490	ø270*490	ø270*490	ø270*490	ø270*490	ø270*490
Capacity	90	150	240	300	450	600	900
Gas Pressure(mpa)	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Gas Consumption(m3/min)	0.37	0.37	0.6	0.6	0.8	1	1.2
Motor Power(kw)	1.38	1.75	2.4	3.8	3.8	7.5	9
Voltage(v)	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Weight(kg)	500	700	900	1200	1600	2000	3500
Overall Size(mm)	2500*1100*1600	2800*1100*1600	3200*1300*1600	3800*1300*1600	4200*1600*1600	4800*1800*1600	4200*2300*1600

Production Images
Company Profile
FAQ
FAQ
1. A: Are you factory?How many workers do you have?
B: Yes,we are factory. our factory is located in zhangjiagang near from shanghai. We have about 50 workers in our factory.
2. A: What about after sale service?
B: 12months of electrical part and 18months of mechanical part after machine installed and running normally.
3. A: What about installation?
B: Our engineer can be sent to your country. but customer should pay the air tickets and 100usd as salary per person per day. besides, customer should arrange the accommodation for them during the trip.
4. A: What do we do if we encounter problem about the machine ?
B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).
5. A: How can you control the quality and delivery?
B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery.

---
