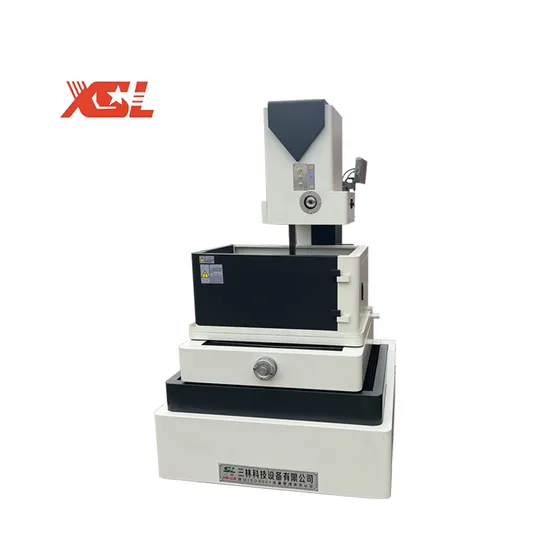

Versatile EDM Wire Cutting Machine with 1-Year Core Warranty

Product Description

Product model	DK7720	DK7735	DK7745F	DK7745	DK7750
Worktable stroke (mm)	420*270	710*480	920*540	810*570	950*650
Table travel (mm)	200*250	350*450	450*700	450*550	500*630
Machining height (mm)	200	480	480	480	600
Machining taper (mm)	6°,15°,30°/80
Cutting speed (m/min)	≥120
Surface roughness/finish(um)	≤2.5
Electrode wire diameter (mm)	0.1-0.2
Electrode wire fixed line speed (m/s)	11.5
Processing accuracy	According to GB7926-2005 standard≤0.02mm
Table movement pulse equivalent (mm)	0.001
Power supply	50Hz.380V
Machine tool power consumption (KVA)	<1.0
Workpiece weight (KG)	100	300	450	450	700
Main machine external dimensions (mm)	1160*810*1300	1240*1170*1400	1700*1600*1600	1600*1240*1400	1720*1680*1700

Product model	DK7750F	DK7763	DK7763F	DK7780	DK77100
Worktable stroke (mm)	1140*650	1140*750	1350*750	1350*985	1700*1170
Table travel (mm)	500*800	630*800	630*1000	800*1000	1000*1200
Machining height (mm)	400/600	600	600/800	600	1000
Machining taper (mm)	6°,15°,30°/80
Cutting speed (m/min)	≥120
Surface roughness/finish(um)	≤2.5
Electrode wire diameter (mm)	0.1-0.2
Electrode wire fixed line speed (m/s)	11.5
Processing accuracy	According to GB7926-2005 standard≤0.02mm
Table movement pulse equivalent (mm)	0.001
Power supply	50Hz.380V
Machine tool power consumption (KVA)	<1.0
Workpiece weight (KG)	700	1000	1000	2000	2600
Main machine external dimensions (mm)	2000*1900*1700	2100*1940*1780	2300*2200*1800	2600*2400*1800	3000*2800*2500

Discover Our Company: Profile
Jiangsu Sanlin Technology Equipment Co., Ltd. Jiangsu Sanlin Technology Equipment Co., Ltd. stands proudly as a high-tech enterprise, expertly blending the art of production, the innovation of research and development, and the strategic acumen of sales within the realm of CNC machinery and equipment. With an esteemed presence in the equipment industry spanning decades, our company specializes in an array of sophisticated machinery including vertical machining centers, high-speed machines, and gantry machining centers, among others. Our portfolio boasts drilling and tapping centers, engraving and milling machines, medium and fast wire cutting machines, and small hole machines, each exemplifying our dedication to quality and craftsmanship. Our equipment finds its home in pivotal manufacturing sectors such as automotive, aerospace, national defense, medical food machinery, rail transit, and metal mold industries. Widely embraced across the nation, our products also make their mark in Southeast Asia, Europe, Africa, and beyond. With Sanlin, expect relentless pursuit of perfection as we aim to deliver exemplary products to our valued users. We warmly invite customers and partners to engage in cooperative ventures with us!
Frequently Asked Questions (FAQ)
A: We are a proud manufacturer and warmly welcome you to explore our factory. A: To choose the right machine model, match the worktable travel and cutting thickness to your workpiece size, and ensure that precision and surface finish meet your expectations. Our TRS series machines are engineered to offer superior precision and an impeccable finish. A: Absolutely, just inform us of your voltage requirements, and we will accommodate them. A: During the warranty period, we offer free replacement for any damaged parts. Beyond that, replacements are available at cost price. For any issues, rest assured, we provide rapid solutions, whether via informative videos or other efficient methods.Q: Are you a manufacturer or distributor? Q: How do I select the ideal machine for my needs? Q: Our local voltage is three-phase 220V (or single-phase 220V, or another specification), while the machine operates at three-phase 380V. Can you adjust the voltage to suit our requirements? Q: What can I expect from your after-sales service?

---
