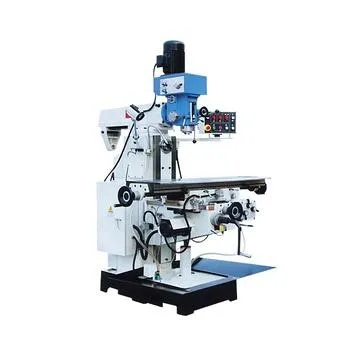

Dml6350c Vertical Automatic Metal Milling and Drilling Machine

Product Description

Main specification:

	unit	specification DML6350C
TABLE :-
Table size	mm	1120x280
T T slot	no	3
T Size ( Width )	mm	14
T Centre distance	mm	63
Max. load of Table	kg	250
machining range :-
-X table Longitudinal travel(manual/auto)	mm	730
-Y table Cross travel (manual/auto)	mm	260
-Z table Vertical travel(manual/auto)	mm	360
MAIN SPINDLE :-
Spindle taper		ISO40
spindle speed /step -- Vertical	rpm	115-1750/8 steps
--Horizontal	rpm	40-1300/12 steps
Max.drilling dia.	mm	30
Max.end milling width	mm	100
Max. vertical milling Dia.	mm	25
Max.tapping dia.	mm	M16
quill travel	mm	120
swivel angle of headstock	degree	±45º
vertical spindle axis to column surface	mm	200-760
vertical spindle nose to table surface	mm	100-460
horizontal spindle axis to table surface	mm	0-360
horizontal spindle axis to arm bottom	mm	175
arm travel	mm	500
FEEDS :-
X Longitudinal/cross feed	mm / min	24-402/9steps
X Longitudinal/cross rapid speed	mm / min	402
POWER :-
main motor	kw	0.85/1.5(V), 2.2(H)
(X/Y/Z) feed motor	kw	0.37(X/Y)
coolant motor	kw	0.04
--others
package dimension	cm	160X152X222 1pc/case
		220X152X222 2pcs/case
overall dimension	cm	166X145X215
/ N/W,G/W	kg	1350/1500

Main features:

1.can realize vertical, horizontal milling processing functions. 2.for vertical milling,spindle sleeve has two kinds of feed, manual and micro . 3.X, Y, Z three directions guideways has grinding function after super audio quenching . 4.automatic feed for X Y, Z directions.

Company Profile
SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.
