Outdoor HDPE SFTP CAT6A Direct Burial Shielded Solid 23 AWG Cable

Product Description

Indoor 25 pairs Strands Solid 24 AWG Copper CMR Rated data cable
Product Description NetHome Direct Burial Water Block Layer CAT6A Cable is ideal for your outdoor direct burial voice, data, video or security networking applications. Whether you are wiring your home, office or entire campus, we have the network solution that is right for you.

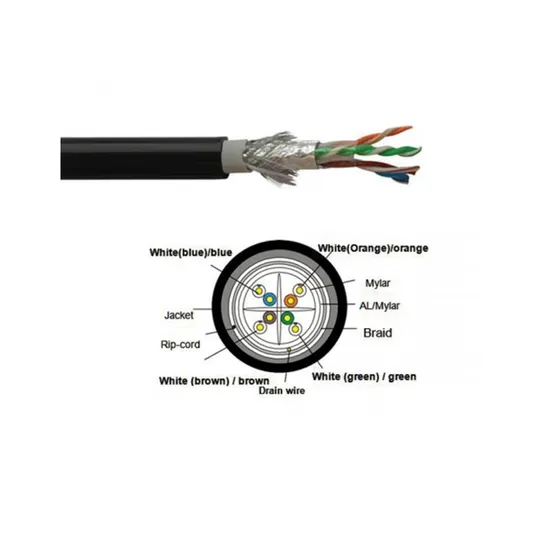

This Shielded, Outdoor, Water Blocking Layer, Direct Burial, CAT6A Cable is the perfect fit for installations where the cable will be buried under ground in conduit. This cable's 8 conductors (4-Pairs) are solid bare copper with a high density polyethylene (HDPE) insulation and a Low Smoke Zero Halogen (LSZH) Jacket. This cable also includes a aluminum foil shielding which helps eliminate and protect against electrical interference that could impede your signal. For added moisture protection this cable includes a Water Blocking PVC layer that repels water keeping it out of the cable and away from the copper conductors. Our Shielded Category 6A Water Blocking Layer Direct Burial Outdoor Cable is designed for residential outdoor direct burial LAN applications, making it the best solution for installation runs that require the cable to be buried under ground in conduit. Additionally, this cable has a drain wire which grounds the electricity after it has been terminated. This drain wire is required on all shielded cable in order to prevent signal loss, cross-talk, and other performance issues. This cable is tested to speeds up to 750MHz.
Product Features High-Performance Data Communications Cable CAT6A Direct Burial, Outdoor, Water Block Layer, Outside Plant Tested for speeds up to 750MHz Suitable for High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet And 155Mbps TP-PMD/CDDI Designed For Outdoor Direct Burial Installations (CMX) Aluminum Foil Shielded w/ Unshielded Twisted Pairs (F/UTP) 4-Pair Easily Identified Color Striped Pairs 23 AWG Solid Bare Copper Conductors Excellent Attenuation And Crosstalk Characteristics Exceeds TIA 568C.2, ISO/IEC 11801, And YD/T1019 Specifications RoHS Compliant ETL Listed Sequential Length Markings On Jacket Supplied On A 1000' Wooden Spool Applications: Outdoor Cabling 4/16 Mbps Token Ring (IEEE 802.5) 10/100/1000 BASE-T (IEEE 802.3) 155 Mbps 1.2G ATM 100 Mbps TP-PMD Analogue Voice, ISDN, ADSL HVAC alarm systems and other signaling STANDARDS ANSI/TIA-568-C.2, ANSI/TIA-568.2-D ISO/IEC 11801:2011 (Ed 2.2) Class E IEC 61156-5 CENELEC EN 50173-1:2011 EN50288-6-1
Detailed Photos
Company Profile

Product Parameters Electrical & Physical Characters:

mperature range	Value
Operation	-20˚C to +75˚C
Conductor Size	23 AWG
Material	Un-Armoured

Electrical Data

Frequency (MHZ)	RL (≥dB)	ATT 20˚C (≤dB)	NEXT (≥dB)	PHASE DELAY ns	Frequency (MHz)	PS NEXT (≥dB	ELFEXT (≥dB)	PSELFEXT (≥dB)
1	20.0		-		1	72.3	67.8	64.8
4.0	23.0	3.78	65.3	552.00	4	63.3	55.8	52.8
8.0	24.5	5.32	60.8	546.73	8	58.8	49.7	46.7
10.0	25.0	5.95	59.3	545.38	10	57.3	47.8	44.8
16.0	25.0	7.55	56.2	543.00	16	54.2	43.7	40.7
20.0	25.0	8.47	54.8	542.05	20	52.8	41.8	38.8
25.0	24.3	9.51	53.3	541.20	25	51.3	39.8	36.8
31.25	23.6	10.67	51.9	540.44	31.25	49.9	37.9	34.9
62.5	21.5	15.38	47.7	538.55	62.5	45.4	31.9	28.9
100	20.1	19.80	44.3	537.60	100	42.3	27.8	24.8
200	18.0	28.98	39.8	536.54	200	37.8	21.8	18.8
250	17.3	32.85	38.3	536.27	250	36.3	19.8	16.8

Electrical characteristics	Value
DC resistance max	9.38 Ohm/omega 100m
DC resistance unbalance	Max 5%
Mutual capacitance	Max 5.6 nF/100m
Capacitance unbalance pair	Max 330pF/100m
Impedance 1-250 MHz	100 ± 15
Propagation delay	Max. 536 ns/100m @ 250 MHz
Dielectric strength	DC KV/sec. 2.5/2
Rated Voltage	300V
Propagation delay skew	Max 45 ns/100m
Insulation resistance - M/omga km	Min.5000
Nominal velocity of propagation	69%

Packaging & Shipping Customer Feedbacks
FAQ
Q1.What is your delivery time?
A: Generally,it will take 3 to 15 days after receiving your deposit.The specific
delivery time depends on the items and quantity of your order.
Q2.Can you produce according to the samples or drawing?
A: Yes,we can produce by your samples or technical drawings.We also can
design and build the molds for you.
Q3.What is your sample policy?
A: We can supply free sample of common fiber optics, but customers have to
pay courier cost and in massive order, we return the sample cost.
Q4. Do you test all your goods before delivery?
A: Yes, all goods are 100% test before delivery.
Q5.How do you assure long term business and keep good relationship?
A:1.We keep persistent improvement to make nice quality and unique products
with competitive price to ensure our customers' benefit.
2.We keep mutual benefit for customers who have supported our company!

---
