Product Details
Product Description
Product Description
Brand:140PLC

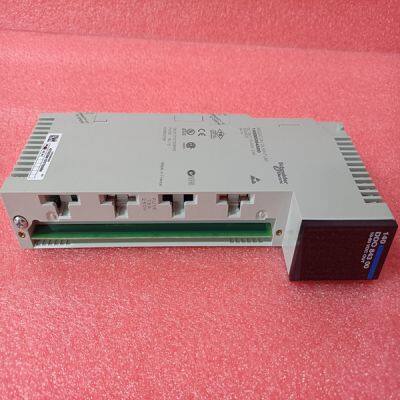

Type:140DDO84300
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
This array handles special tasks requested by the processor. MBS.CONTROL.PortControl This array allows port commands to be controlled by the processor. Tag Name Range Description MBS.CONTROL.PortControl. Set 0 or 1 Sends Port Control to module MBS.CONTROL.PortControl. Get 0 or 1 Reads Port Control from module MBS.CONTROL.PortControl. Portx n/a Definition of Port x Control MBS.CONTROL.PortControl. Portx.Active 0 or 1 Port Control: Disable = 0, Enable = 1 MBS.CONTROL.PortControl. Portx.CmdEnableBits[x] 0 or 1 Index of command to be controlled. Example: Command 20 in port 1 command list can be controlled at CmdEnableBits[1].3. This is the 20th bit offset. MBS.CONTROL.CmdControl This array allows the processor to dynamically enable configured commands for execution. Tag Name Range Description MBS.CONTROL.CmdControl. CmdControlTrigger 0 or 1 One-shot command control: Disable = 0, Enable = 1 MBS.CONTROL.CmdControl. NumberOfCommands 0 to 6 Total number of commands to be executed via Command Control MBS.CONTROL.CmdControl. PortNumber 1 or 2 Port number to be associated with Command Control function MBS.CONTROL.CmdControl. CommandIndex[x] 0 or 249 Command Index of port command [x] to be enabled. Up to 6 command indexes can be populated at a time. MVI69E-MBS ♦ CompactLogix™ Platform Using Controller Tags Modbus Serial Enhanced Communication Module User Manual ProSoft Technology, Inc. Page 60 of 159 MBS.CONTROL.EventCmd_DBData This array allows the processor to dynamically build Modbus commands with data associated to the MBS database. This feature is meant for periodic execution such as resetting the clock and zeroing-out counters.
Tag Name Range Description MBS.CONTROL.EventCmd_DB Data.EventCmdTrigger 0 or 1 Toggle to send Event Command. 0 = Disable, 1 = Enable MBS.CONTROL.EventCmd_DB Data.PortNumber 1 or 2 Port number to be associated with command Control function MBS.CONTROL.EventCmd_DB Data.SlaveID 1 to 248 Slave ID of Modbus slave MBS.CONTROL.EventCmd_DB Data.InternalDBAddress 0 to 9999 Used only if UseModuleDBAddress=1. MVI69E database address (word address for functions 3,4,6,16 and bit address for 1,2,5,15) MBS.CONTROL.EventCmd_DB Data.PointCount 0 to 125 Number of bit/words associated with this command. MBS.CONTROL.EventCmd_DB Data.SwapCode 0 to 3 Swap code 0 = no swap, 1 = word swap, 2 = words & byte swap, 3 = byte swap MBS.CONTROL.EventCmd_DB Data.ModbusFunctionCode - Modbus function code (1,2,3,4,5,6,15, or 16) MBS.CONTROL.EventCmd_DB Data.DeviceDBAddress 0 to 9999 Modbus address of the target slave database MBS.CONTROL.EventCmd_DB Data.EventCmdStatusReturned - Event status returned by the module
>>
