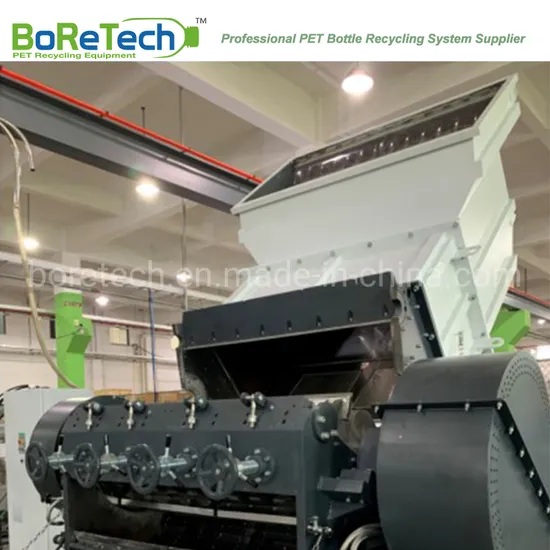

PET Wet Crushing Machinery

Product Description

PET Wet Crushing Machinery
Crushers with special structure design allow to add water in crushing process for the first step of friction washing;the water helps to reduce temperature inside the chamber of crusher and blade wearing,and most importantly,to reduce the amount of fine powder loss.
Reasonable process configuration can effectively ensure the removal of impurities and the continuity of the process,and at the same time,create the better condition for subsequent hot flotation.
Crusher adopts the latest technology of V-shaped cutting, which can transport the PET bottles to the center of the rotary blades, it avoids the material sticking to the side wall of chamber and also increases the service life of crusher chamber.
The crushing room is made of high-hardness material and is processed by CNC lathe.
It has the characteristics of great thickness, high strength, strong wear resistance,no pollution, long service life and convenient for daily maintenance.
Adopt a safety curtain at the inlet to prevent the PET flakes from splashing out when cutting.
The crusher pulley is connected to the drive shaft through a V-shaped belt, which has the characteristics of balanced operation of crushing, precise coordination, it's easy to disassembly and assembly with simple maintenance.The feeding hopper and screen frame areoperated by hydraulic device.
Rotary blades can be adjusted outsidethe crushing room, it's more convenient.

Model	Power(kW)	Nmber of Rotary Blade(pc)	Number of Fixed Blade(pc)	Size of Chamber(mm)	Capacity(kg/h)
SG-70100B	90	3*2	2*2	700*1000	1500
SG-70150B	110	3*2	2*2	700*1500	2500
SG-90160B	200	3*2	2*2	900*1600	3500
SG-90200B	250	3*2	2*2	900*2000	4000

Packing&Transport
1,pre-sale support:
Normally we suggest you paint our standard color , but we can supply customization paint service by paid.
2,after-sale service:
Warranty:1 year for machinery,6 months for electrical.
For mechanical parts, our guarantee duration is 12 months. If the part is broken within this period, we will send the spare parts immediately to the client for repairing.
3,technical support:
Normally, we send our engineer(s) to supervise the installation and commissioning. The buyer need to prepare the operation staff to implement it. BORETECH is able to send mechanical engineer, electrical engineer and operation engineer. The operation engineer is to help the buyer's labors to know how to operate the washing line and get the best efficiency.
BoReTech is a resource environmental enterprise which integrates manufacturing,engineering and equipment supply. BoReTech is devoted to develop large input capacity of smart PET bottle recycling system with full automation and intelligence. Meanwhile, BoReTech as resources and technology integrator of recycled polyester industrial chain supply turnkey service of PET bottle washing line,bottle-to-fiber and bottle-to-bottle engineering.
BoReTech is the only PET bottle washing line for food-grade B-To-B project in Asia,and more than 170 PET bottle washing lines are running all over the world.

---
