Powerjet Extrusion HDPE Plastic Drum 5 Gallon PC Extrusion Blow Molding Machine 25L 50L Litre

Product Description

Products Description

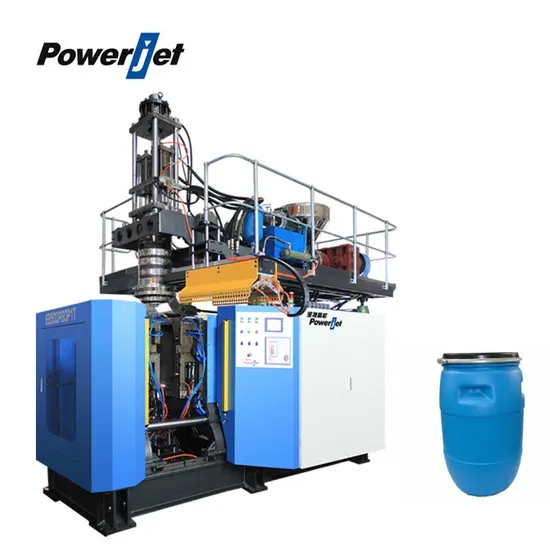

EB500P Automatic Extrusion Blow Molding Machine
Powerjet Single Station Extrusion Blow Molding Machine EB500P is specialized for manufacturing bottles and containers which Max 60L.
Max Bottle Capacity - 60(L)
Clamping Force - 400(KN)
Extrusion Weight(HDPE) - 180(kg/hr)
Applications - Wide Range Of Bottles For Daily necessities, toiletries, beverages, water tanks, laundry detergent/shower gel/motor oil bottles, etc
Product Paramenters

MODEL	UNIT	EB250P	EB500P
Max.Product	L	30	30
Clamping Force	kN	200	400
Screw Diameter	mm	∅85	∅90	∅100
Screw L/D Ratio	L/D	24	25
Screw Rotary Speed	RPM	60	60
Extrusion Weight(HDPE)	kg	120	150	180
Extrusion Motor Power	kW	30	37	55
Pump Motor Power	kW	22	22
Heating Capacity	kW	35	40
Operation Pressure	Mpa	0.6~0.8	0.6~0.8
Air Consumption	m³/min	2.0	2.5
Cooling Water Consumption(25ºC)	L/min	120	150
Machine Dimension (LxWxH)	mm	4700x3500x3400	5300x3400x4250
Machine Weight	kg	9000	11000

FAQ
Q1: Are you a factory or trading company?
A1: We are a factory.
Q2:Do you offer guarantee for the products?
A2: Yes, we offer 1 years warranty to our products.
Q3: Where is your factory located?
A3:POWERJET PLASTIC MACHINERY co., LTD. the headquarter is located in Foshan high tech Industrial Park, Sanshui, Foshan in Guangdong ProvinceWe are warmly welcome you to visit us.

---
