Steel Access Floor Raised Floor Building Material

Product Description

Product Introduction

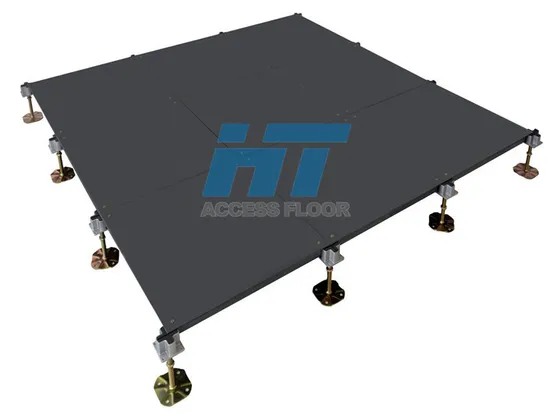

HT 600*600*33mm steel access floor
is made of good quality cold-rolled steel sheet, which is stretched, spot-welded, and coated with epoxy powder after having been phosphoreted. There is foaming cement fully filled, with corner-lock holes punched in four sides of the panel.

Characteristics
Designed specially for office building
Excellent rolling load & ultimate load performance
Light weight cement fill makes panels solid and quiet
Completely noncombustible
Black electrodeposition cathodic epoxy paint finish for life time protection
Class A flame spread and smoke development rating
All-steel pedestals provide excellent impact load performance
Technical Parameter

Type	Size	Uniform load	Concentrated load		Rolling load		Impact load	Ultimate load
			0.100''/2.5mm DEFLECTION		10PASS	10KPAAASS
FS662	600*600*35mm	14.71KN/	2.94KN	300KG	2.45KN	2.00KN	100LB/45KG	8.85KN
	610*610*35mm
FS800	600*600*35mm	17.78KN/	3.56KN	363KG	2.94KN	2.45KN	100LB/45KG	11.25KN
	610*610*35mm
FS1000	600*600*35mm	22.22KN/	4.45KN	454kG	3.56KN	2.67KN	150LB/68KG	14.50KN
	610*610*35mm
FS1250	600*600*35mm	27.78KN/	5.56KN	567KG	4.45KN	3.56KN	150LB/68KG	18.36KN
	610*610*35mm
FS1500	600*600*35mm	33.34KN/	6.68KN	680KG	5.56KN	4.45KN	175LB/68KG	22.17KN
	610*610*35mm
FS2000	600*600*35mm	44.45KN/	8.89KN	907KG	6.67KN	5.56KN	175LB/79KG	29.42KN
	610*610*35mm

---
