Efficient High Power Single Phase Induction Motor

Product Description

Product Description

YL series double-value capacitor single-phase asynchronous motor eucalyptus national standard JB / T7588 requires an obituary manufacturing. It has excellent starting and operation performance, low noise, small vibration, compact structure, light weight and convenient maintenance characteristics. Widely used in air compressor, water pump and family workshop and other mechanical equipment as power.
Frame Size:			63-132
Rated Voltage:			220V/110Vor request
Rated Frequency:			50HZ,60HZ
Rated Power:			0.18-7.5kW
Insulation Class:			F
Altitude:			≤1000m
Relative Humidity:			≤90%
Protection Class:			IP55
Cooling Method:			IC411
Ambient Temperature:			-15°-+40°C
Duty:			S1
Mounting:			B3,B5,B14,B35,B34

Type	Power kW	Rated current A	Speed r/min	Eff %	Power factor	Locked rotor torque Rated torque	Locked rotor current A
YL711-2	0.37	2.2	2800	67	0.92	1.8	16
YL712-2	0.55	3.9	2800	70	0.92	1.8	21
YL801-2	0.75	4.9	2800	72	0.95	1.8	29
YL802-2	1.1	7.0	2800	75	0.95	1.8	40
YL90S-2	1.5	9.4	2800	76	0.95	1.7	55
YL90L-2	2.2	13.7	2800	77	0.95	1.7	80
YL100-2	3	18.2	2800	79	0.95	1.7	110
YL112M-2	4	26.6	2850	77	0.95	2.2	175
YL711-4	0.25	2.0	1400	62	0.82	1.8	12
YL712-4	0.37	2.8	1400	65	0.92	1.8	16
YL801-4	0.55	4.0	1400	68	0.92	1.8	21
YL802-4	0.75	5.1	1400	71	0.92	1.8	29
YL90-4	1.1	7.3	1400	73	0.95	1.7	40
YL90-4	1.5	9.7	1400	75	0.95	1.7	55
YL100L1-4	2.2	13.9	1400	76	0.95	1.7	80
YL112M-4	3	18.6	1400	77	0.95	1.7	110
YL132S-4	4	27.1	1400	78	0.77	2.2	175
YL132M-4	5.5	31.2	1400	78	0.79	2.2	200

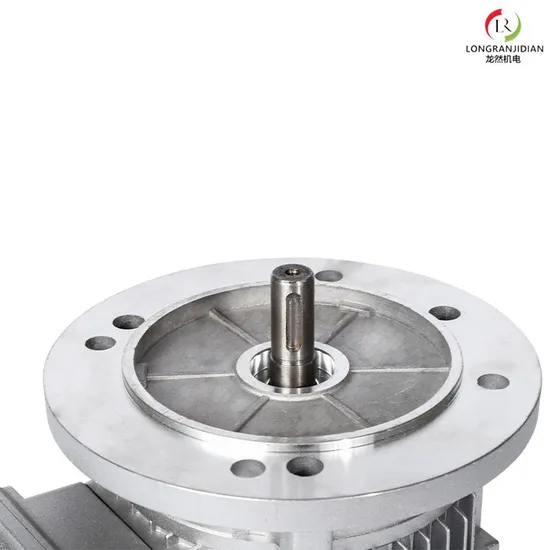

Detailed Photos
more products Longran Electromechanical (Zhejiang) Co., Ltd. specializes in the production of various AC and DC motors. The main products are YE5 series high-efficiency three-phase asynchronous motors, YE4 series high-efficiency three-phase asynchronous motors, YL, ML series double-value capacitor motors, YC series capacitor starter motors, YY, MY series capacitor running motors, JY series motors, YS, MS series small power motors.JY, JW, JZ series, YEJ electromagnetic brake series, YVP, Y2VP, MLVP frequency conversion speed regulation series, DC brushless series, DC high pressure cleaning series, vehicle motor series, etc.The company has a strong technical force and has hired many senior engineers and a group of high-quality technical personnel.Modern equipment, high-tech management, and advanced testing capabilities are the guarantee of product quality. Quality creates excellence, and service embodies extraordinary. Joining hands with Longran to win the future is the solid concept of Longran.In line with the tenet of "seeking development with science and technology, surviving with quality", we are meticulous and keep improving" has always been our faithful commitment to serving customers. Our products sell well all over the country and are exported to Europe, South America, the Middle East and Southeast Asia. People from all walks of life are welcome. Letters from people to discuss business.Longran's main products:CE certificate/New National Standard GB/T28575-2012 1 Secondary Energy Efficiency/IP55:* YE4 Super High Eficiency Secondary Energy Efficiency Motor;* YE3 Super High Efficiency Energy Saving Series Three -phase Asynchronous Motor;* YE3 Super High Efficiency Energy Saving Aluminum Shell Motor;
* YEJ2 series electromagnetic brake three- phase asynchronous motor;* YBX3 series flameproof three- phase asynchronous motor;
* Riello Combustaion Engine Specific Motor;
*ZFY series special motor combustion engine
*DC High-Votage Cleaning Machine
*LRYBDC Series Flameproof Electric Motor for Industrial Use with High Efficiency
*LR Series Waterproof Motor for Underwater Use with IP68 Protection Rating
* YVP2 Frequency conversion series three phase asynchronous motor
*YC Series heavy-duty single phase capacitions start induction motor
*YL SEries single phase dual capacitor induction motor
*MY ML Series aluminum sell single phase motor
*MS CDL Series high effciency three-phase asynchrorous motor* YD2 series two-speed multi-speed three phase asynchronous motor;* YVFEJ2 series variable frequency brake three-phase asynchronous motor,* YDEJ series Multi-speed electromagnetic brake three. phase asynchronous motor, oil pump motor,* special motor for stone machinery and equipment, custom-made motors with special specifications for powerrequirements, and motors with different frequencies and different pressures.* The protection grades include IP55, IP66, etc. and various special motors derived from them.
Certifications
Our Advantages
FAQ 1,Q: Can you make as per customer drawing?
A: Yes, we offer customized service for customers accordingly. We can use customer's nameplate for the electric molors.
2. Q: What is your terms of payment ?
A: 30% deposit before production,balance T/T before delivery.
3. Q: Are you a trading company or manufacturer?
A.We are a manufacurer with advanced equ pment and experienced workers.
4. Q: What's your production capacity?
A:4000-5000 PCS/MONTH.
5. Q: Free sample Is available or not?
A:Yes, we can supply free sample if customer agree to pay for the courier cost.
6. Q: Do you have any certiflcate?
A:Yes, we have CE certificate and TUV certificate report.

---
