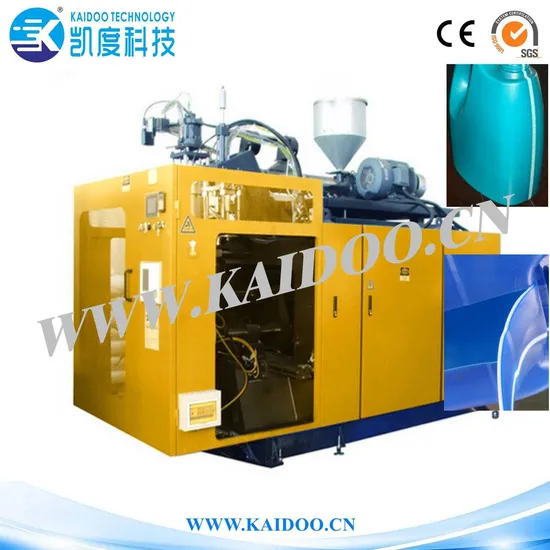

5L (Single station & Four head & with Transparent line & Two layer) Blow Moulding / Molding Machine

Product Description

BRIEF INTRODUCTION
------------ZHANGJIAGANG KAIDOO PLASTIC TECHNOLOGY CO.,LTD
Kaidoo Technology is located in the beautiful Riverside City - Zhangjiagang. The company use European and American technology, supply automatic blow molding machines,(suitable for the production of 5ML-3000L plastic bottles, plastic buckets, drum,tool box, toys, fuel tanks,table panel,plastic pallet,automobile part and other products), and supply Blow mould ,Injection mould,Auxiliary equipment. The company has a a large number of outstanding skilled workers and engineers with more than 10 years of design and manufacture of various hollow equipment and maintenance services experience.
We firmly believe that only the innovation can promote development, and only through cooperation we can find win-win solution. We are sincerely looking forward to working with you full cooperation!
ENTREPRISE CULTURE
Kaidoo Technology persisted "the talented as well as the staff is the first resources" idea,and "the science and technology is the development of the enterprise source power, the innovation is enterprise's soul" the management idea,in the staff the positive initiative "the unity cooperation,grows together" the team idea ;The initiative " the good faith, is highly effective, is satisfied" the service idea,carries out "the autonomy from, asks really to strive for realism" the staff personal integrity. Through a serious of enterprise culture construction, establishes one to have the cohesive force and the team cooperation spirit, the study high quality staff troop.
WORKSHOP
MACHINE SPECIFICATION

MODEL	KDB65-4PT (Single station & Four head & With Transparent line & Two layer)
	This series is single station mold-moving machine, high efficiency and stability, suitable for making max 5L containers in small batch production. It adopts central-incoming extrusion die head which can be divided into single layer, double layer and transparent line type.

Specification	Technical Parameter
Machine model	KDB65-4PT
Material	PE,PP
Max container capacity	5Liter (single head) / 300ml (Four head)
Machine Dimension (LxWXH)	2.9 x1.9x2.5 m
Machine weight	5 T
Clamping Unit
Mould platen size (WxH)	368x430mm
Platen opening stroke	188-538mm
Max mould size (WxH)	348x410mm
Clamping force	70KN
Power
Oil pump driving power	11KW
Max driving total power	26KW
Blow pressure	0.6Mpa
Air consumption	0.6M3/min
Cooling water pressure	0.2-0.3Mpa
Water consumption	50L/min
Average energy consumption	15-18kw
Extruder unit
Screw diameter	65
Screw L/D ratio	24:1
Melting capacity for HDPE	70 kg/hour
Number of heating zone	3 zone
Screw heating power	13.8kw
Extruder motor power	22kw
Die head (Four head)
Number of heating zone for single die head	3 zone
Heating power for single die head	5.7KW
Max die-pin diameter	135mm
Center distance of Four head	85mm

---
