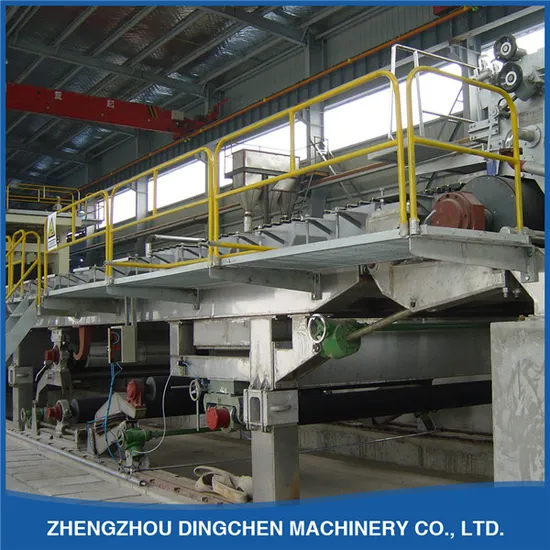

2400mm 25tpd Paper Product Making Machine Newsprint Paper Production Line

Product Description

2400mm 25tpd Paper Product Making Machine Newsprint Paper Production Line
For complete paper making machine, There are THREE Main Parts:
1.Pulping equipment ( Different Raw Material: Waste Paper, Virgn Pulp Board, Mixed Pulp. )
2.Paper making machine ( Different Paper Width, Paper Weight, Production Capacity. )
3.Paper processing equipment ( Different type according to customer's requirement. )
Technical parameter:

1	Raw material	waste paper
2	Output paper	writing paper
3	Paper weight	40-80g/m2
4	Net paper width	2400 mm
5	Fourdrinier wire width	2800mm
6	Capacity	25T/D
7	Working speed	150m/min
8	Designing speed	200m/min
9	Rail gauge	3100mm
10	Drive way	Alternating current frequency conversion adjustable speed, sectional drive.

Note:
Financial Analysis can be provided if customers' need to compare with cost of different Raw Materials.

Tips
Different model has different specifications
If customer want to get a quotation as soon as possible, please provide the following information for us :
1.Output paper type;
2.Capacity(tons/24hours);
3.Output paper weight(gram/m2);
4.Raw material
The structure and specifications of main equipment:
1. Fourdrinier part: equipped with 10.83m fourdrinier wire 1 set, the fourdrinier table is coated by stainless steel. Φ700mmvacuum couch roll 1 pc. Stainless steel head box.
2. Press part: Φ600mm×2800mm×3100mm stone roll 1 pc, Φ550×2800mm×3100mm rubber roll 1 pc, pneumatic pressure device.
3. Dryer part: Φ2000mm×2800mm×3100mm alloy dryer can 1 set, Φ1500mm×2800mm×3100mm dryer can 14 sets, arranged by 1+8+6, the second dryer can has Φ450mm×2800mm×3100mm reverse press roll 1 pc, Φ550mm×2800mm×3100mm touch roll 1 pc, pneumatic pressure device. Rubber shore hardness 90ºC±2.
Multi-cylinder part has top and bottom dryer fabric devices.
4. Calendaring&winding part: three-roll calender 1 set, cylinder winding machine 1 set.

5. Drive&control part: the drive part is equipped with Φ500 speed reducer 1 set. Alternating current frequency conversion adjustable speed, sectional drive. Full digital closed loop control system.

Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure screen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper machine, head box, cylinder mould, dryer cylinder, roller etc.) C.Paper making finished devices (Paper calender, pope reel,size press, paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage 1.Experienced producing team2.Advanced technological strengthProduct Advantage 1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage 1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation Packaging & Shipping

Our Services Our Services
