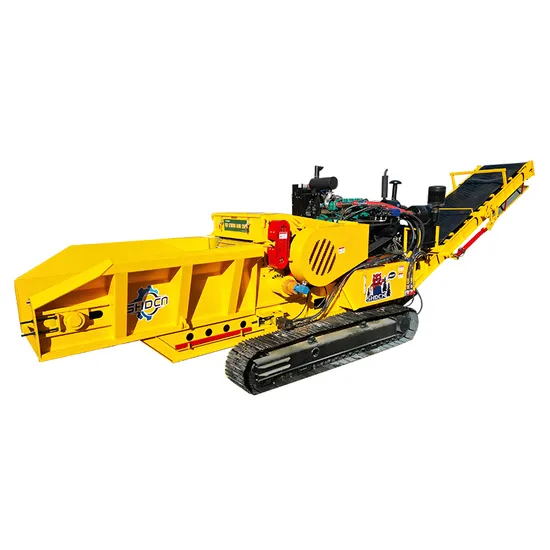

New Model Shd1300-600 Crawler Type Fully Hydraulic Diesel Wood Chipper Made in China

Product Description

Self-propelled Crawler Fully Hydraulic Wood Crusher
Products Description
Tracked wood chipper is a kind of mobile wood processing equipment, usually composed of tracked chassis, power system, cutting system, conveying system, etc.
Its working principle is to realize the movement of the equipment through the tracked chassis, convey the wood to the cutting system for slicing or crushing treatment, and then output the treated wood chips or sawdust through the conveying system. Tracked wood chipper usually has the advantages of convenient movement, wide application range, and strong processing capacity, and is suitable for occasions such as field logging, construction sites, and wood processing plants.
TECHNICAL PARAMETERS

Model	SHD 1300-600 Series Self-propelled Crawler Fully Hydraulic Wood Crusher
Feeding Inlet	1250*500mm
Capacity	20-30t/h
Rotor Diameter	800MM
Rotor Speed	765RPM
Knife Quantity	12 pieces
Conveyor Length*Width	5m* 1.2m
Wood Chips Size	20-80mm
Machine size	12600*2600*3880mm
Weight	20t
Chain Plate Width	1200MM
Chain Plate Length	3000MM

Product advantage
1. The crushing power system of this equipment adopts our company's customized Weifang diesel engine, which has stable performance (low speed, high torque). The walking system adopts Yuchai diesel engine, which has stable quality and reliable performance
2.The feeding chain plate conveyor, feeding roller, discharge conveyor, and crawler walking system use a gear pump as the power source, operate at low pressure, have a simple structure, and are easy to maintain
3.The electronic control sensor system adopts major brands such as Siemens, and Omron Electric, with stable and reliable quality
4.The hydraulic control valve is self-developed by our company for this product: (combination of push rod and manual valve)
5.The oil temperature sensor will monitor the temperature of the hydraulic oil in real time, and when the temperature is too low or too high, it will remind you in the form of a light
6.The diesel fuel tank is equipped with an electric current level display (stable and reliable performance);
7. Industrial display screen protection level: IP65, working environment temperature: -10 ºC -55 ºC, working environment humidity: 10-90% RH (non condensing), vibration resistance: 10-25HZ (2G/30 minutes in X, Y, Z directions);
8.The front end adopts a strong magnetic roller to effectively remove iron containing substances from the wood chips;
Production Process
Company profile
We are Shanghangda Machinery Manufacturing Co., Ltd, the manufacturer was established in 1999, one of the first Chinese companies to initiate its own research capabilities in wood chipper and biomass pellet technology.
Shanghangda Products are specialists in the design and manufacture of high quality chip and wood pellet equipment ,has been the leading manufacturer of the highest quality wood chipper and wood pellet machine available on the market today, products are exported to Europe, America, Africa, Southeast Asia and other countries around the world We got creditable good praise from our customers in many years.
Our Services
1. Install and debug equipment for customers according to the situation
2 Guide customers to operate equipment skillfully and produce safely
3 Patiently explain the daily maintenance of the equipment and the troubleshooting of common faults for customers
4 Try to solve difficult problems for customers as soon as possible
5 Customer technicians are welcome to come to our company for instruction and study at any time CERTIFICATE

---
