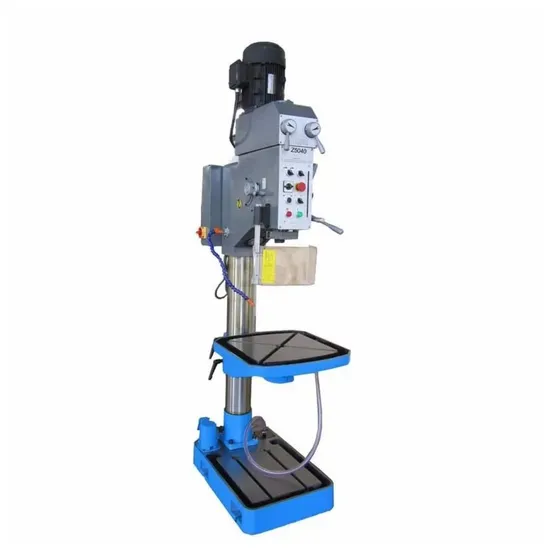

Automatic Mini Bench Top Round Column Vertical Drilling Machine for Metal

Product Description

Product Description
Motor power:2.2/2.8kw, max travel of spindle:180mm.
Specification

Item	Parameter
Max. dilling capacily(steel)	40mm
Max tapping capaciylIron/steel)	M27
Diameter of Column	160mm
Spindle Travel	180mm
Distance spindle axis to column generating	360mm
Max Distance spindle nose to table	590mm
Max Distance spindle nose to base	1180mm
Spindle taper	MT4
Spindle speeds range	42- 2050r/min
Spinde speeds series	12 step
Spindle speeds	0.07/0.15/0.26/0.40mm/r
Dimension of worktable surface	550*470mm
Table Travel	550mm
Dimension of base table	450*440mm
Overall height	2330mm
Main motor	2.2/2.8KW
Coolant motor	40W

Company Profile
SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.
Order Evaluation
Exhibition
Certifications
FAQ
1. How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2. What is your payment terms ?
A: 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.

3: Where is our factory located? How can I visit there?
A : Our factory is located in No. 52 Linyin Road, Economic and Technological Development Zone, Nantong City, Jiangsu Province ,226001 China. You are warmly welcomed to visit us.

4. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

5. Can you send the service engineer to our company ?
We have engineers stationed in Canada, Egypt, and Algeria. The after-sales service system is very perfect.
