Product Description
Product Description

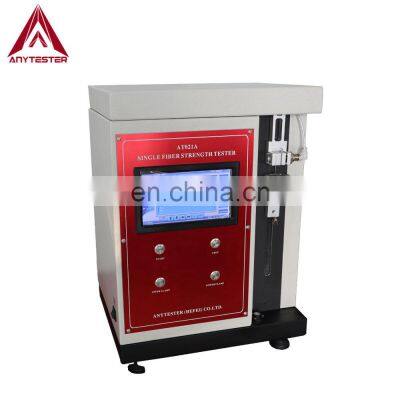

Product DescriptionAT021 Series Single Fiber Strength Tester is used to determine the breaking load, elongation at breaking load, load at specified elongation, elongation at specified load, creep, etc. of natural fiber, chemical fiber, metal wire, hair, carbon fiber, etc.StandardGB/T 9997, 13835.5, 14337 ISO 5079ASTM D3822ISO 5079, 11566BS 4029Note: For more standards, please contact us!SpecificationItemAT021AAT021BClamping methodManualPneumaticLoad range500cNLoad division0.001cNLoad resolution1/100000Load cell accuracy≤±0.05%F·SLoad precision≤±0.5% when 2%~100% of measuring rangeTest speed2～200mm/min, digitally settable & adjustableExtension resolution0.1mmMaximum extension100mmClamping distance set methodDigital set or auto positionPretension0.1cN, 0.15cN, 0.2cN, 0.3cN, 0.4cN, 0.5cNTwo for eachData storage capacity≥2000timeDimension400×300×550mm （L×W×H）Power SupplyAC220V±10% 50HzWeightApprox. 45kgDetails & Features★Test functions:F1. Tensile testF2. Elasticity test at specified elongationF3. Repeated tensile test at specified elongation with settable two stop timeF4. Elasticity test at specified loadF5. Repeated tensile test at specified load with settable two stop timeF6. Repeated tensile test at incremental load with settable two stop timeF7. CreepF8. Relax★Large LCD screen display of all parameters and data in both English menu;★Delete random test data and export test result in Excel document, convenient for the user to connect with the enterprise management software;★Software analyzing function：breaking point, rupture point, stress point, yield point, initial modulus, elastic deformation, plastic deformation and so on; ★Safety protection measures: limit, over-load, negative force, over-current and over-voltage protections;★Force calibration: digital code calibration (authorized code);★Unique bidirectional controlling technology to make tests convenient and rapid, abundant and various test results (data report, curve, diagram and form);★Standard modular design, convenient to maintain and update.Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions1160x510x1050mmWeightApprox. 80kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
