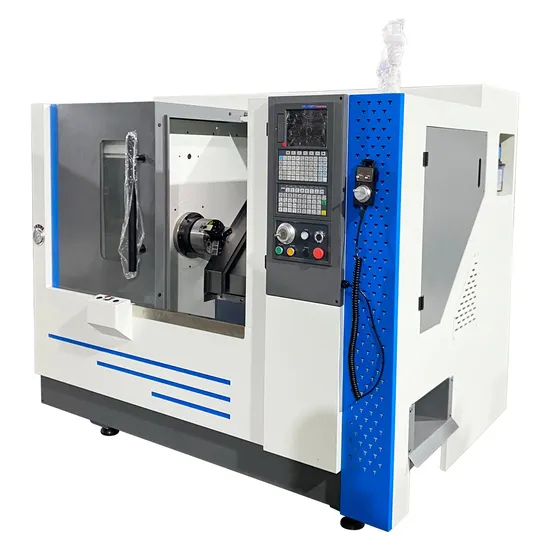

Gd4640 Power Turret Lathe Machine CNC Turning and Milling Machine

Product Description

Product Description
Detailed Photos
Product Parameters

Standard Configuration Detail
Specification Item		Quantity		Supplier		Remark
Specification of bed		1unit		Shiheng		integrated bed
Control System		1unit		Guangshu(English)		980TC3
Spindle Motor		1unit		Weichuang		5.5KW
Three-axis motors		1 unit		Weichuang		8.28N
X/Z axial line track		each 1unit		Rexroth Germany		Z-axis 35 /X-axis 30
X/Z axis bearings		each 1unit		Harbin		7603025
X,Z,Y triaxial coupling		1 unit		Shiheng		22-22-78
X axis Ball Screw		1 unit		Taiwan Shenghe		3210
Z axis Ball Screw		1 unit		Taiwan Shenghe		3210
Main structure fuselage castings		1 unit		sino		HT300
overload protection device contactor		1 unit		Tianzheng		General
Spindle		1 unit		Shiheng		A2-5
Spindle locker		1 unit		Qiuwu		Hydraulically
Tool Post/Turret		1 unit		Lianji, Taiwan		12 station power turret
Cooling Water Pump		1 unit		Zegong		550kw
Auto Lubrication System		1 unit		Qiantong		2L
Hydraulic Chuck		1 unit		Dingchang		6 inch
Sensors/Encoders		1 unit		Toroidal		/
Hydraulic Tailstock		/		/		/
Chip Cleaner		/		/		/
Technology Parameter
Parameter		SPECIFICATIONS		Units		Value
Machining Capacity		Maximum turning diameter over bed		mm		450
		Maximum turning diameter over turret		mm		200
		Maximum machining length		mm		300
		Maximum machining bar diameter		mm		45
		Diameter of spindle bore		mm		56
		Maximum stroke of X/Z		mm		800/400
		Spindle maximum spindle speed		r/min		4000
Power System		Spindle Motor		kw		5.5
		Cutting fluid pump motor		kw		0.9
		Hydraulic pump motor		kw		0.75
		X/Z drive motor		kw		1.7kw(GSK original)
Tool Post		Height of rectangular tool shank section		mm		20
Precision		Repeat Positioning accuracy		mm		<0.005
		Machining accuracy		mm		<0.005
		Spindle beat		mm		<0.005
Tailstock		Movement		/		/
		Diameter of sleeve		/		/
		Taper of sleeve		/		/
		Sleeve movement		/		/
Feed Velocity		Fast Feed velocity		m/min		X:20/Z:20
Other		Power supply power		KVA		7.5
		Machine weight		kg		2500
		Machine Size		mm		2200X1600X1900

Packaging & Shipping
Customer Receiving Goods
Company Profile
FAQ
1.What is the payment Terms?
A:30% initial payment when order,70% balance payment before shipment;lrrevocable LC at sight.When we receive theadvance payment,we will start to make production.when the machine is ready,we will take pictures to you.after we gotyour balance payment we will send the machine to you.
2. What is your trade terms? A:FOBCFRand CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 15days. if some special ma- chines will be some longer.You can place order accordingto delivery time and ship timewe willgive you the answer accordingly.
4. What is your trade terms?
A:FOB,CFRCIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MoQ is one set, lathe warranty is one year and system warranty is three vear
6. What is the package of the machines?
A:The machines standard will be packed in wood case.

---
