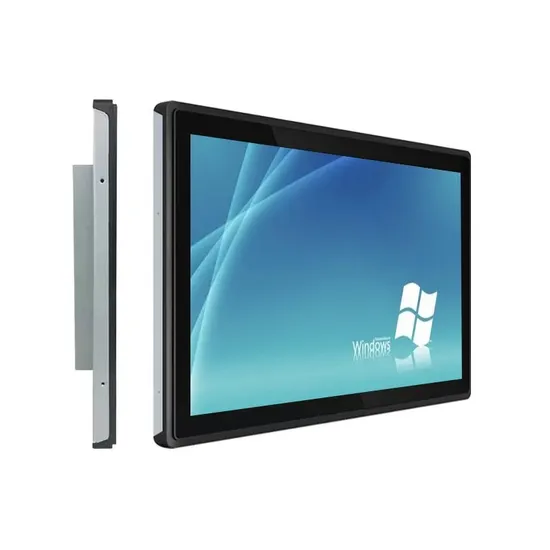

Monoblock Barebone Industry PC with 17inch Touch Screen Display

Product Description

Product Parameters
Product Name:	Touch Screen Monitor
Display Type:	Active Matrix TFT LCD, LED Backlight
Touch Technology:	Projected Capacitive (10 Points)
Case/ frame Color:	Black
The Diagonal Dimension:	17" inch
Aspect Ratio:	4:3
Overall Dimensions:
Active Area:
Display Colors:	16.7M
Resolution(pixel):	1280*1024 @ 60Hz
Brightness(Standard):	250 cd/m²
Response time:	5 ms
View Angle(from center):	L/R:89/89;U/D:89/89 (Typ.)(CR≥10)
Contrast Ratio:	1000:1(Typ.)
Input:	VGA,DVI,HDMI(optional DP)
Input Video Signal Connector:	Female head DE - 15 connector, female head DVI - D, Dual -Link connector, female head HD connector
OSD:	Digital OSD
User Controls:	OSD Button: Menu, Up, Down, Select, Power
Power:	Power connector (on power adapter) - Type: DC cartridge Plug: Cartridge OD: 5.5 mm (± 0.1mm); Needle Inner Diameter:2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm)
	External DC, input voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS (for all in one PC) - Type: DC cartridge receptacle; Cartridge ID: 5.5 mm(± 0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge depth: 8.0 mm (± 0.3mm);
Temperature:	Work: 0 ° C ~ 40 ° C; Storage: -20 ° C ~ 60 ° C
Humidity:	Work: 20% to 80%; Storage: 10% to 90%
Installation options:	Open Bracket Mounting,VESA Mounting;
Warranty:	1 Year

Other Size Reference
Size	Ratio	Overall Dimensions(W*H*T)	Active Area	Brightness	Resolution	Net weight(approximate)
10.1"	16:10	265*179.5*45mm	216.96*135.6mm	330 cd/m²	1280*800 @Hz	2.8 kg
15"	4:3	355*279*47mm	304*228mm	300 cd/m²	1024*768 @Hz	4.21 kg
15.6"	16:9	398*248*47mm	344*193.5mm	400 cd/m²	1920*1080 @Hz	3.67 kg
17"	5:4	385*317*47mm	337.9*270.3mm	250 cd/m²	1280*1024 @Hz	4.97 kg
18.5"	16:9	457*281*47mm	409.8*230.4mm	250 cd/m²	1366*768 @Hz	4.98 kg
19"	5:4	430*355*47mm	376.3*301mm	250 cd/m²	1280*1024 @Hz	5.9 kg
21.5"	16:9	532*319*47mm	476.6*268.1mm	250 cd/m²	1920*1080 @Hz	6.3 kg
22"	16:10	527.2*350*60mm	473.7*296.1mm	250 cd/m²	1920*1080 @Hz	7.5 kg
23.6"	16:9	581.8*350.8*60mm	521.2*293.2mm	300 cd/m²	1920*1080 @Hz	7.7 kg
23.8"	16:9	586*356*47mm	527*296.4mm	250 cd/m²	1920*1080 @Hz	7.55 kg
27"	16:9	655.7*396*55mm	597.8*336.3mm	300 cd/m²	1920*1080 @Hz	10.38 kg
32"	16:9	749.1*452.7*65mm	698.4*392.8mm	400 cd/m²	1920*1080 @Hz	13.3 kg
43"	16:9	1007.3*596.6*69mm	940.8*529.2mm	400 cd/m²	1920*1080 @Hz	15.2 kg
49"	16:9	1141.9*672.2*71mm	1073.7*604mm	380 cd/m²	1920*1080 @Hz	18.2 kg
55"	16:9	1277.7*748.5*70mm	1209.6*680.4mm	400 cd/m²	1920*1080 @Hz	20.2 kg

Product Features Flat front panel: fully laminated, industrial-grade full-flat capacitive touch screen Resolution: Best resolution 1280*1080 Capacitive touch: G+G capacitive 10-point touch screen, high sensitivity Personalization: open installation structure, can be wall-mounted, externally embedded, suspended, VESA standard support arm, customizable Dual system optional: Android/Windows two systems can be selected according to different scenarios. Rich interfaces: serial port, USB, network port, Phoenix terminal, aviation interface, GPIO can be customized Safety protection: The screen is designed with fully tempered glass, anti-slip and anti-collision Applicable to multiple scenarios: This product can be used in industrial automation terminals and smart display terminals, such as smart self-service terminals, new retail smart terminals, queuing machines, etc.; it is currently widely used in factory workshops, vehicle-mounted displays, medical industries, financial institutions, government units, etc. Expositions Specifications Display

Size	17 inch
Backlight Type	E-LED
Aspect Ratio	16:9
Responsive Time	8ms
Displaty Area	338(H)×271(V)mm
Resolution	1280(H)×1024(V)
Refresh Frequency	60Hz
Color Gamut NTSC(Typ)	60% NTSC CIE1931
Contrast(Typ)	1200:1
Viewing Angle	178°(H/V)
Screen Brightness(Typ)	350cd/m²
Life Time	≥60000 hours

Operation System Android

System Version	Android 11.0
Ram	2G(default) / 4G / 8G
Rom	16G(default) / 32G(optional)
CPU	RK3568 Quad core A55 64bit, Max2.0GHz
GPU	ARM G52 2EE
NPU	1T
Interfaces	DC, Type-C, USB3.0, USB2.0*2, RJ45, HDMI OUT, Earphone, Sim card, RS232(Optional)
Network	Support Gigabit Ethernet, 4G mobile network, WIFI2.4, BT-4.2 (optional WIFI5.8, BT-5.0)

Windows

System Version	Windows 10
Ram	4G(default) / 8G DDR3
Rom	128G SSD
CPU	Core i5 - 3
Interfaces	DC, HDMI, VGA, USB2.0, USB3.0, LAN, CO-LAY,OUT, MIC IN, RS232(Optional)

Touch

Type	Capacity
Input	Fingers / Passive infrared pen / active infrared pen
Touch Precise	±2mm at least 90% area
Touch Points	10 points

Physical Parameters

Machine Size (l × w × t)	377×311.5×48mm
Packaging size (l × w × h)	485*392*118mm
Net Weight	3.45kg
Gross Weight	4.85kg
Material	Metal Sheet/ Alloy
Power	AC100-240V~(+/-10%),50/60Hz
Power Interface	DC 12V 5A / 7A
Power Consumption	51W

Accessories

Power Cable	X1
Wall Mounted Set	X1

Enviroment

Working Temperature	-10ºC~60ºC
Working Humidity	///
Stocking Temperature	-20ºC~70ºC
Stocking Humidity	///
Working Altitude	Below 5000meters

---
