Bagging Square Solid Waste Fiber Wood Shaving Fully Automatic Baler Machine

Product Description

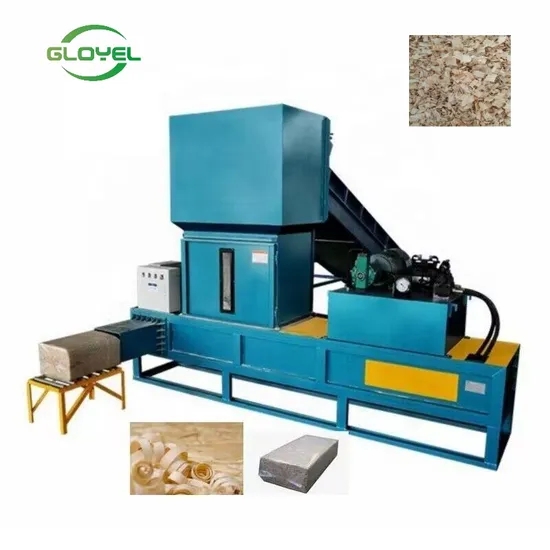

Bagging Square Solid Waste Fiber Wood Shaving Fully Automatic Baler Machine
Product Description
1-This Fully automatic compression bagging line implements PLC interface control system. The automatic compression and manual bagging/sealing deliver operational efficiency and ease of operation. The operator can choose auto or manual mode for material feeding.an automatic bagging system can be added as an option.
Raw Material and Final Product
2-The product is mainly used for the compression of wood shavings,corn silage,rice husk.cottonseed hulls,licorice, fiber corncob,straw, hay,hops,and other scraps. The bagging is completed in one go while reducing transportation cost with easy storage benefit.
3-Production site
Main machine-----------bagging machine
Features
1,Simple to operate, easy to use and highly automated, using less labor, feed in manually or automatically by conveyor.
2, Applicable to compress and bag sawdust, rice hull, cotton seeds shell, hay, peanut shell and other scraps.
3, Bales are easy to store, reducing transport cost.
Product Parameters

Model	GYW-KT90	GYW-KT110	GYW-KT140	GYW-KT180
Hydraulic Power (Ton)	40/50 automatic baler	50/60	60/80	80/100
Packing Size (L*W*H) mm	750*430*310	750*430*310	750*430*310	750*430*310
Feed Opening Size(L*H) mm	1000*700	1000*700	1000*700	1200*700
Capacity (T/H)	1.5-1.8	2-2.5	2.5-3	2.5-3
Voltage (V/HZ)	380/50	380/50	380/50	380/50
Power (Kw/Hp)	11/15	15/20	18.5/25	22-30
Dimension (L*W*H) mm	3920*2880*1700	3920*2900*1700	3920*2800*1700	4250*3100*1700
Weight(Kg)	2400	2700	3000	4300
Bag Size(W*H) mm	740*1150	740*1150	740*1150	740*1150

More pictures
Customer Feedback
Packaging & Shipping
Company Profile
After Sales Service
1.We can provide you the one year warranty but without the spare parts.
2.The professional and timely 24 hours after-sale service.
3.The relative video of the machine installation and instruction will be provided for you.
4.We can also meet the special voltage demand.
5.The engineer is available to service machinery oversea.
FAQ
Q1:How can I pay my order?
-----We can accept payment through Payment terms: T/T; L/C; Western Union; Money Gram.
Q2:What's the certification of your trap wrapping machine?
------CE Certification.
Q3: How to pack the products?
------We will use standard export package.
Q4:How to install after the equipment arriving destination?
------We will provide detailed illustrations for you.
Q5:How long is the warranty?
------The warranty is 1 year (except spare parts and artificial damage).
