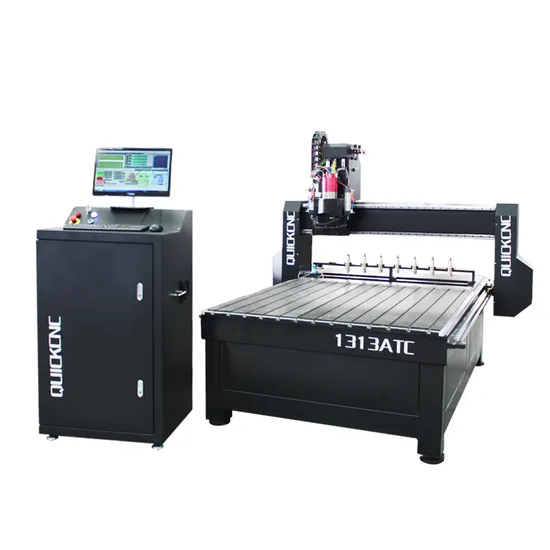

Multi-Function Atc 3D Wood Carving 1325 3 Axis CNC Router Machine for Furniture Wood Door Making

Product Description

Multi-Function Atc 3D Wood Carving 1325 3 Axis CNC Router Machine for Furniture Wood Door Making
Product Description

Wood Engraving 1313 atc cnc router machine Wood Router Automatic Tool Changer.it added 8pcs tool magazines Behind the machine bed to make the machine more efficient. ATC Cnc Router Machine Equipped with absolute value private server clicks, no need to return to the origin, simple operation, easy to make money. Our Advantages
1. K1313ATC with ATC spindle and Linear tool changing magazine, the machine can change tools automatically during the work.
2. Except the spindle, we use high quality components on this machine like servo motors and servo drivers, Taiwan linear rails and ball screw,Leadshine control system and so on
3. Machine base is produced by CNC machine, and machine base's five sides are produced at one same procession to make sure the machine body geometry tolerance is standard. The frame is a welded heavy steel tubular construction that supports all the other parts of the machine.4.With built-in memory function, no need toworry about tool breakage or power failure,bus absolute value, no need to return to the origin.
5.One-button tool setting, twice as accurateand twice as fast as manual tool setting.

Product Parameters

Model	K1313ATC
X-Y-Z axis working area	1300*1300*200mm
Machine size	2200*2200*2200mm
Repositioning resolution	0.02mm
X-Y movement	Rack and pinion, gear drive/Taiwan
Z movement	Ball screw drive
Guide	Linear square/Taiwan
Spindle power	5.5KW water coolinmg ATC
Spindle speed	24000rpm
Inverter power	7.5KW inverter
Tool magazine	Auto 8pcs Linear tools changer
Drive motors	Stepper Motor
Working voltage	AC380V/50-60Hz, 3-phase
Command code	G code
Computer interface	USB 2.0
Software	Artcam , Alphacam copy
Controls	DSP/MACH 3
Table	Aluminum/ Vacuum table
Standard equipment included	Tool Box
	Dust hood
	Oil lubrication system
	Tool shanks
	Water pump for the spidnle
	Tool sensor
Optional	Vacuum cleaner
	vacuum pump
	1500*3000mm working size
	1300*2500mm working size
	SYNTEC controller

Detailed Photos
5.5kw ATC spindle
effi-cient, high-quality cutting and milling. Spindle Speed 24000rpm

Linear type tool change
8-tool magazine in line, suitable for com-plex processes,can process cabinet doorsand bodies.


T-slot/Vacuum table
The vacuum table with high qulity PVC Strong sealing
Aluminum table also is provide
Oil lubrication system
A central oiler sufficient to keep your machine lubricated. When the oil tank needs filling, top up with a good quality SAE 30 weight oil.


Control system
DSP handle control


Sample show

wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc
1.Woodworking:
billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould
2.Advertising:

copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc.
3.Die industry:

acrylic,density board,artificial stone,organic glass,soft metals like aluminum,copper, etc.
4.Decoration:
5.Cylindrical object
Company Profile
Jinan Quick-Fulltek CNC Machinery Co.,Ltd, was founded in 2006, we are one of the best CNC router suppliers in China. Our products are selling well widely all over the world and have good reputations.specializes in R&D and production of various cnc equipment,such as 3 axis cnc, ATC cnc,automatic load and unload cnc,4 axis,5 axis, PTP, panel furniture cnc.All series machines are with one-year warranty. Meanwhile, customized equipment are available according to different requirements.
Facing the chances and challenges of Global Economic integration as well as being offered with opportunities Knowledge Economy Era,we are determined to achieve our dreams step by step with the advantages of high technology. We aim to be a professional,branding and international suppliers for woodworking industrial solutions.
Packaging & Shipping
1.Whole film packaging machine
2.Anti-collision package edge
3.Fumigation-free plywood wooden box with iron binding belt4.According to the customer's requirements for loading the whole container or LCL at Qingdao port.

Certifications
The following is the patent certificate obtained by QUICK CNC, as well as CE certification, ISO 9001, etc.
Customer Photos
QUICK CNC has in different customer groups all over the world, including agents, end customers, and customer recommendations, etc. There are the advertising industry, the woodcraft industry, furniture manufacturing industry, and metal processing industry, etc.
QUICK CNC has established strategic alliance business relationships with partners all over the world. Its products are sold all over the world, and are well received at home and abroad for "quality and durability".

---
