Automatic Paper Roll Die Cutting Machine for Paper Cup/Paper Bowl

US$29,000.00-33,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
BC-CC
Species
Die Cutting and Creasing Machine
Imprinting Type
Platen
Placing Form of Template
Horizontal
Die Cutting Tool
Manganese Steel Plate
Computerized
Computerized
Automatic Grade
Automatic
Application
Paper Packaging Materials
Cutting Precision
0.1mm(White Paper)
Cutting Speed
120-180times/Min
Pressure
320t
Power
18kw
Air Pressure Requirement
0.5MPa
Transport Package
Stretch Film
Specification
970/1200
Trademark
DB
Origin
China
HS Code
8441400000
Production Capacity
200sets/Year

Product Description

Brief introduction
BC-CC Series roll die cutting machine based on international advanced technology, has a high stability, high safety performance, high precision of the finished product, it's widely used in printing ,packaging and paper products industries.
Technical parameter
Type BC-CC970*550 BC-CC970*640 BC-CC1200*640
Cutting Precision ±0.1mm(white paper)
Rated Cutting Speed 120-180times/min
Max Cutting Pressure 320T
Max Cutting Paper Size 950*510mm(W*L) 950*610mm(W*L) 1150*610mm(W*L)
Min Cutting Paper Size 400*350mm (W*L)
Suitable Paper Weight 100-500gsm
Power 18Kw 18Kw 18Kw
Air pressure requirement 0.5 Mpa
Air pressure consumption 0.25m³/min
Overall Dimensions 4.6*2.6*2.3m (L*W*H) 5.0*2.6*2.3m (L*W*H) 5.0*2.8*2.3m (L*W*H)
Total Weight 7.6T 7.8T 8.6T

Machine picture

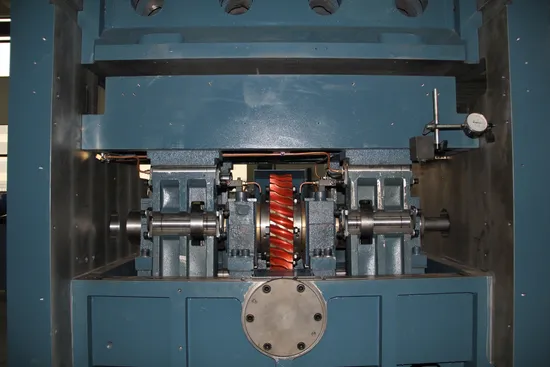

Main machine tranmission parts
Lubrication systemDiecutting unitWeb guide unit
Paper collection
