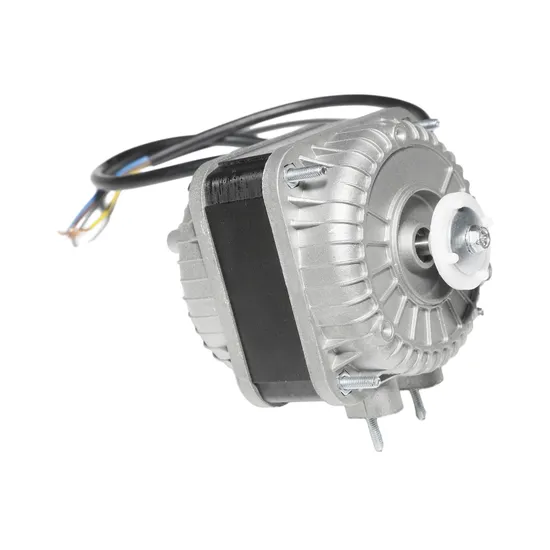

5W 10W 16W 25W 34W 110V 220V Refrigerator Freezer Fan Motor Shade Pole Motor for Condenser

Product Description

Product Description

Model Number	YZF
Type	Asynchronous Motor
Frequency	60, 50/60 Hz
Protect Feature	Explosion-proof
Phase	Three-phase
AC Voltage	220-240/110-120V
Specifications	Lower noise and highly efficiency
Efficiency	YZF serise condenser fan
Fan blade	200-300mm
Output Power	5-34W

MODEL	VOLTAGE	FREQUENCY	INPUT	OUTPUT	CURRENT	SPEED
	(V)	(HZ)	(W)	(W)	(A)	(R/MIN)
YZF 5-13-26	220-240	50/60	33	5	0.25	1300
	110-120	60	33	5	0.55	1550
YZF 7-20-26	220-240	50/60	38	7	0.3	1300
TZF 10-20-26	220-240	50/60	40	10	0.38	1300
	110-120	60	55	10	0.8	1550
YZF16-25-26	220-240	50/60	70	16	0.5	1550
	110-120	60	70	16	0,.10	1300
YZF18-30-26	220-240	50/60	73	18	0.5	1300
	110-120	60	75	18	1.1	1450
YZF25-40-26	220-240	50/60	90	25	0.7	1300
	110-120	60	100	25	1.4	1450
YZF35-45-26	220-240	50/60	110	34	0.85	1300
	110-120	60	120	34	1.5	1450

MODEL	WEIGHT	FAN BLADE	BRACKET
	(KGS)	(MM)	(MM)
YZF 5-13-26	0.8	Φ200	H72
YZF 7-20-26	1.1	Φ230	H84
TZF 10-20-26	1.1	Φ230	H84
YZF16-25-26	1.4	Φ250	H84
YZF18-30-26	1.5	Φ300	H109-1
YZF25-40-26	1.8	Φ300	H109-2
YZF35-45-26	2	Φ300	H109-3

Detailed Photos

Company Profile


FAQ Q1.Are you manufacturer?
A:Yes,We are manufacture since from 2010,it is a well-know company with good reputation in China.
Q2:If I need sample, could you support?
A:We can supply sample according to your requirement.
Q3:Whats your MOQ?
A:200 units per model.
Q4:Can we use our logo or design in the product and cartons?
A:Yes,OEM is acceptable. We can use your logo and design in the package as your requirement.
Q5:How long will be the production time?
A: After confirm your order, the production will be 15-30 days.
Q6:What shipping way?
A: Depend on your requirement: For urgent order with light weight, you can choose air shipping.
For heavy weight, you can choose sea shipping and save cost.
Q7: What about the payment term?
A: We accept T/T, L/C.
Q8: How can you make sure high quality product?
A: We have strong quality control team,all the raw material will be inspected before production, the final production will be inspected before shipping.

---
