1. Integrated design, low maintenance cost.
2. The core components of the 3d crystal machine are equipped with an anti-shock system to effectively prevent core components from being damaged.
3. Engraving speed: ≥4000 points/second, repeated positioning accuracy: ≤±0.01mm. Its engraving effect is delicate and saves engraving time.
4. It uses professional 3D laser engraving control software.The interface is friendly, easy to learn, supports multiple data formats, and has good compatibility.
5. The 3d crystal machine has an automatic centering function to facilitate the operator's placement of the crystal.
6. Laser inscribing control software can convert engraving directly to photo format files with one click(Only photos of people are supported);
7. All parts of the 3d laser etched crystal machine are carefully selected to meet the industrial 7 days /24 hours continuous operation;
The 3d laser etched crystal machine uses high-speed and high-precision digital scanning laser system optical components, laser life of more than 25,000 hours, enjoy lifetime maintenance.

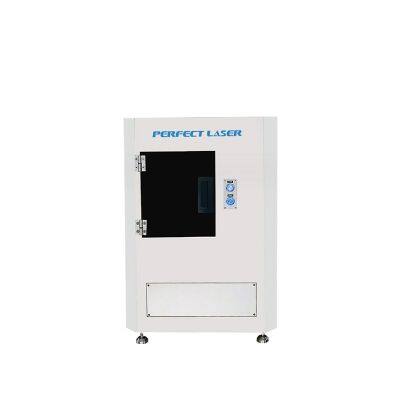

| Product name | 2D 3D Mini Subsurface Laser Crystal Engraving Machine |
| Model | PE-DP-B1 |
| Pulse | ≤7ns |
| Power | ≤3W |
| Wave length | ≥532nm |
| Single pulse joule energy | ≥1.2mJ |
| maximum frequency | 4KHz |
| Laser type | Solid-end pumped laser |
| Life span | ≥ 25,000 hours (lifetime maintenance) |
| Outline Dimension | Laser Cavity: ≤34×16×13CM |
| Laser power supply: ≤38×40×9.5CM |
| Machine weight | ≥90kg |
| Maximum crystal size available | 120×120×80 mm |
|
| Main engine size | ≤x=500mm, |
| y=550mm, |
| z=750mm,(Computer external) |
| Power stability | ≥±3%(24 hours of continuous work) |
| Engraving speed | ≥4000points/sec |
| Resolution | ≥1200dpi |
| Working power supply | ≥AC220V/50Hz |
| Repeated positioning accuracy | ≤±0.01mm |
| Control system hardware | 3-axis linkage (digital signal 2D light control + Z-axis machine control) |
| File compatible format | 3DS, DXF, OBJ, CAD, STL，JPG ,BMP,Supports external scanner and 3D camera format |
| Module window | Display ordinary DXF; Map OBJ; Photo JPG/BMP; Generate point cloud parameters and point cloud editing functions |
| Language | English and Chinese optional |
| Layering method | Ordinary layer and relief layer |
| Add-point method | Excise the dorsal side; |
| Integral single side 180°; |
| Overall double-sided 360°. |
| Support format | 3D scanner files, software modeling, cameras, mobile phones and other files |
