Tungsten Carbide Band Saw Double Side Grinder Woodworking Blades Angle Grinding Machine

US$11,500.00 1 Set (MOQ)

Basic Info.

Model NO.
210
Type
Surface Grinding Machine
Processing Object
Band Saw Blade
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Tungsten Band Saw Ablade
Precision
High Precision
Certification
ISO 9001
Condition
New
Model
210
Max Grinding Width
210mm
Grinding Pitch Range
10-40mm
Grinding Head Motor
0.75kw*2
Grinding Blade Length
11 Meters
Feeding Speed
0-120 Teeth Per Minute
Transport Package
Customized
Specification
Customized
Trademark
Customized
Origin
China
HS Code
8460390000
Production Capacity
200 Sets Per Year

Packaging & Delivery

Package Size
150.00cm * 150.00cm * 150.00cm
Package Gross Weight
500.000kg

Product Description

Product Parameters

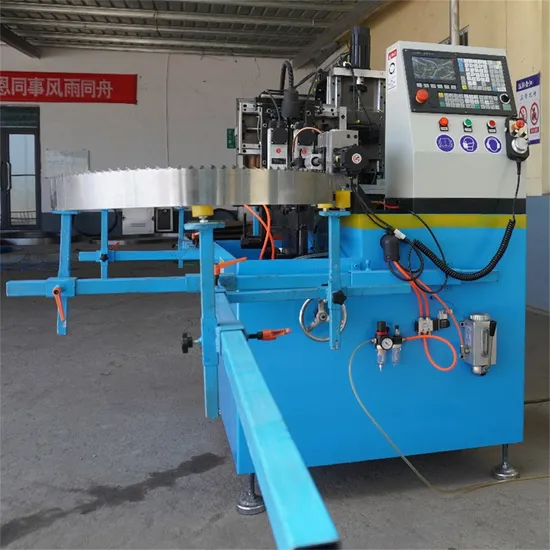

Carbide Tipped Woodworking Band Saw Blade Double Side Gringing Machine
Tooth Feeding Motor
 0.75KW
Feeding Speed
 0-120Teeth / Min
Grinding Head Motor
 0.75KW
Grinding Head Motor Speed
 12000RPM
Up/down Motor
 0.75KW
Forward/Backward Motor
 0.75KW
Left/Right Motor
 0.75KW
Water Pump
 0.04KW
Overall Size
 1350*1700*1150MM
Grinding Pitch Range
 10-40MM
Grinding Blade Length
 500-11000MM

Carbide Tipped Woodworking Band Saw Blade Relief Angle Gringing Machine
Teeth Feeding Motor Power
 0.75KW
Teeth Feeding Speed
 0-120 Tooth /Min
Grinding Head Motor Power
 0.75KW
Grinding Head Motor Speed
 12000R/Min
Forward/Backward Motor
 0.75KW
Up/Down Motor Power
 0.75KW
Water Pump Motor
 0.04KW
Grinding Teeth
 10-40mm
Grinding Blade Length
 500-11000MM
Overall Size
 1350*1700*1150MM

Carbide Tipped Woodworking Band Saw Blade Rake Angle Gringing Machine
Teeth Feeding Motor Power
 0.75KW
Teeth Feeding Speed
 0-120 Tooth /Min
Grinding Head Motor Power
 0.75KW
Grinding Head Motor Speed
 12000R/Min
Up/Down Motor Power
 0.75KW
Water Pump Motor
 0.04KW
Grinding Teeth
 10-40mm
Grinding Blade Length
 500-11000MM
Overall Size
 1350*1700*1150MM

Related Machines
No. Stellite Tipped Woodworking Band Saw Blade Production Line
1 Uncoiler And Feeder
2 16 Ton Gulleting Machine + Mould
3 Guillotines + Blades
4 Welding Machine (Normal/Precision)
5 Annealing Machine
6 Roll Machine + Frame & Tools
7 Stellite Tips Brazing/Welding Machine (Manual /Automatic)
8 Side Grinding
9 Angle Grinding Machine

No. Carbide Tipped Woodworking Band Saw Blade Production Line
1 Uncoiler And Feeder
2 16 Ton Gulleting Machine + Mould
3 Guillotines + Blades
4 Welding Machine (Normal/Precision)
5 Annealing Machine
6 Roll Machine + Frame & Tools
7 Carbide Tips Welding/Brazing Machine (Manual /Automatic)
8 Double Side Grinding
9 Back Angle Grinding Machine
10 Front Angle Grinding Machine
