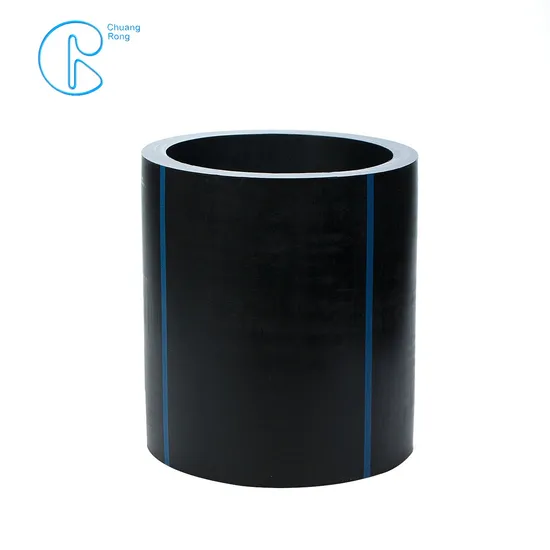

| Product name | HDPE Pipe (Poly Pipe) In Black/Blue Color For Water Supply |
| Specification available | DN20-1600mm (outer diameter) |
| SDR/pressure ratings | For PE100 Pipe: SDR9-PN20, SDR11-PN16, SDR13.6-PN12.5, SDR17-PN10, SDR21-PN8, SDR26-PN6, SDR33-PN5
For PE80 Pipe: SDR9-PN16, SDR11-PN12.5, SDR13.6-PN10, SDR17-PN8, SDR21-PN6, SDR26-PN5, SDR33-PN5 |
| Colors available | Black color with blue strips or blue color, or as per request |
| Standards that follow to | ISO 4427, AS/NZS 4130, EN12201, DIN 8077/8078, other international standards. |
| Markings on the pipe | As per customer's request. |
| Samples available | Yes, small quantity of samples available. |
| Packing method | Pipe dia. dn20-63mm be in coils with 100m/200m length
Pipe dia. Dn75-1200mm shall be packed in bars with 5.8m or 11.8m length |
| MOQ | Negotiable |
| Production lead time | 3-5 days for a 20ft container, 5-7 days for a 40ft container. |
| Warranty time | 15 years for normal use |
| Payment term | T/T or LC at sight |
| FOB loading port | Dalian China |
| Place of origin | Dalian, China |
Technical parameter The superior performances of CR HDPE water pipes comply with the standard ISO4427/EN12201/AS4129 standard:
| Item | Technical Index |
| Density (g/cm³) | 0.941~ 0.965 |
| Black Carbon Content | 2 ~ 2.5% |
| Vica Softening Point (ºC) | ≥126 |
| Melt Flow Rate, 190ºC, 5kg (g/10min) | 0.2 ~ 1.4 |
| Longitudinal Shrinking Rate | ≤3% |
| Elastic Modulus (Mpa) | 600 ~ 900 |
| Coefficient Of Linear Expansion (mm/mºC) | 0.16 ~ 0.20 |
| Oxidation Induced Time , 200ºC (min) | ≥20 |
| Extension Rate Break | ≥350% |
| Hydraulic test for PE100 pipe | 20ºC,100h, Circumferential Stress 12.4Mpa | No leakage/no rupture |
| 80ºC,165h, Circumferential Stress 5.5Mpa | No leakage/no rupture |
| 80ºC,1000h, Circumferential Stress 5.0Mpa | No leakage/no rupture |
| Hydraulic test for PE80 pipe | 20ºC,100h, Circumferential Stress 9.0Mpa | No leakage/no rupture |
| 80ºC,165h, Circumferential Stress 4.6Mpa | No leakage/no rupture |
| 80ºC,1000h, Circumferential Stress 4.0Mpa | No leakage/no rupture |
<Note>: Black Carbon Content is only applicable to HDPE water pipes with black color.
HDPE Fittings & HDPE Pipe Welding Machine CR is a integrated provider of HDPE piping systems.To support the connection of our HDPE pipe, we are also able to provide full ranges of HDPE pipe fittings & welding machines.
Type
| Specification
| Diameter(mm)
| Pressure
|
HDPE Butt Fusion Fittings
| Reducer
| DN50-1200mm
| SDR17,SDR11, SDR9(90-400mm)
|
Equal Tee
| DN50-1200mm
| SDR17,SDR11, SDR9(90-400mm)
|
Reducing Tee
| DN50-1200mm
| SDR17,SDR11, SDR9(90-400mm)
|
Lateral Tee(45 deg Y Tee)
| DN63-315mm
| SDR17,SDR11, SDR9(90-400mm)
|
22.5 Deg Elbow
| DN110-1200mm
| SDR17,SDR11, SDR9(90-400mm)
|
30 Deg Elbow
| DN450-1200mm
| SDR17,SDR11, SDR9(90-400mm)
|
45 Deg Elbow
| DN50-1200mm
| SDR17,SDR11, SDR9(90-400mm)
|
90 Deg Elbow
| DN50-1200mm
| SDR17,SDR11, SDR9(90-400mm)
|
Cross Tee
| DN63-1200mm
| SDR17,SDR11, SDR9(90-400mm)
|
Reducing Cross Tee
| DN90-1200mm
| SDR17,SDR11, SDR9(90-400mm)
|
End Cap
| DN20-1200mm
| SDR17,SDR11, SDR9(90-400mm)
|
Stub End
| DN20-1200mm
| SDR17,SDR11, SDR9(90-400mm)
|
Male(Female) Union
| DN20-110mm 1/2'-4'
| SDR17,SDR11
|
The HDPE pipe fittings that we can provide: DN20-110mm PP compression fittings DN63-800mm injection mouded HDPE butt fusion fittings DN20-630mm HDPE electrofusion fittings The HDPE pipe welding machine available: DN20-110mm HDPE pipe socket fusion welding machine DN63-800mm HDPE pipe butt fusion welding machine DN20-630mm HDPE pipe electrofusion welding machine
