| US$100,000.00-180,000.00 | 1 SET (MOQ) |
| Selection Table | |||||
| Model | Pressure (MPa) | Billet Diameter (mm) | Billet Length (mm) | Total Power (KW) | Overall Size |
| Metric Tons(UST) | |||||
| XJ-630(690UST) | 21 | Φ80-Φ100 | 500 | 120 | 8.0×3.2×2.8 |

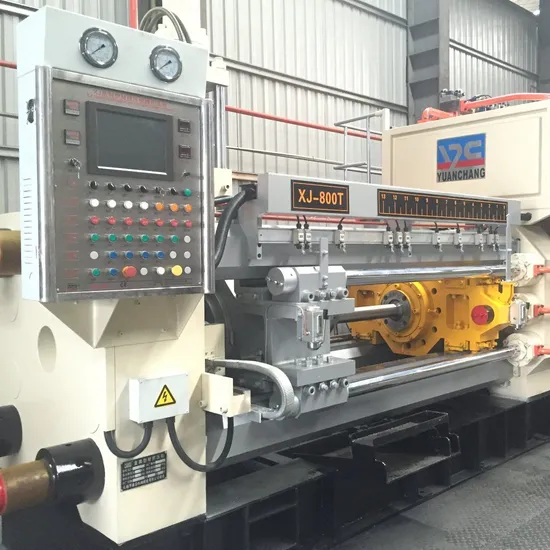

| XJ-800(880UST) | 21 | Φ100-Φ130 | 550 | 250 | 11.0×3.5×3.2 |
| XJ-1000(1100UST) | 21 | Φ110-Φ140 | 600 | 250 | 11.5×3.8×3.4 |
| XJ-1350(1500UST) | 25 | Φ120-Φ152 | 750 | 400 | 12.5×4.2×3.8 |
| XJ-1500(1650UST) | 25 | Φ127-Φ152 | 850 | 400 | 13.5×4.2×3.8 |
| XJ-1800(2000UST) | 28 | Φ152-Φ203 | 950 | 600 | 15.5×6.0×4.2 |
| XJ-2000(2200UST) | 28 | Φ178-Φ228 | 1000 | 600 | 16.0×6.5×4.5 |
| XJ-2200(2400UST) | 28 | Φ178-Φ228 | 1050 | 750 | 16.5×6.5×4.5 |
| XJ-2500(2750UST) | 28 | Φ203-Φ254 | 1050 | 750 | 18.0×7.5×5.5 |
| XJ-2750(3000UST) | 28 | Φ203-Φ254 | 1100 | 850 | 18.0×7.5×5.5 |
| XJ-3000(3300UST) | 28 | Φ228-Φ280 | 1150 | 1000 | 19.0×8.0×6.0 |
| XJ-3600(4000UST) | 28 | Φ254-Φ330 | 1200 | 1100 | 20.0×9.0×6.5 |
| XJ-4000(4400UST) | 28 | Φ280-Φ330 | 1300 | 1100 | 20.0×9.0×6.5 |
| XJ-4500(5000UST) | 28 | Φ280-Φ355 | 1300 | 1300 | 21.5×10.0×7.0 |
| XJ-5500(6000UST) | 28 | Φ305-Φ406 | 1500 | 1500 | 23.0×11.0×7.5 |
| XJ-7500(8200UST) | 28 | Φ355-Φ457 | 1700 | 1800 | 25.0×14.0×8.5 |
