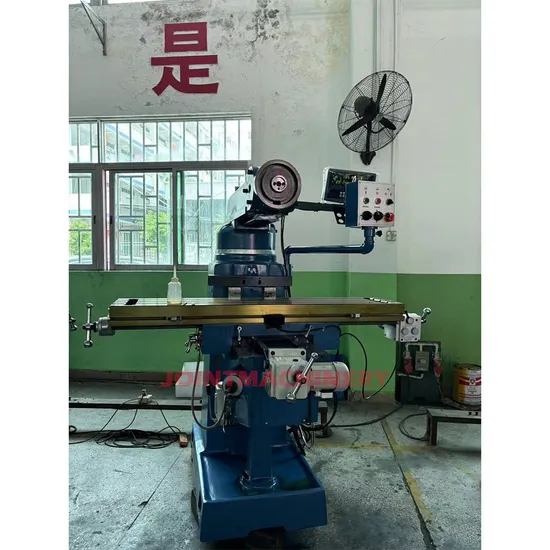

Nt40 5HP Universal Metal Fresadora Precision Manual Milling Machine Tools

Product Description

Experience unmatched durability and affordability with this universally acclaimed model, crafted for enduring quality.
√ Enjoy an unbeatable combination of low price and high quality, ensuring exceptional value.
√ Assembled in China with precision-engineered parts from Taiwan, guaranteeing reliability and excellence.
√ With a meticulous spindle tolerance of 0.005mm, achieve unwavering precision for all your milling needs.
√ Perfectly designed for mold processing, whether in household appliances or everyday necessities, delivering precise results.
1. WORKTABLE
Our worktable, crafted with ultra-audio quenching and precision grinding, boasts expertly scraped guides for an unparalleled smooth experience. Consider adding a rotary table to elevate its flexibility and adaptability.
2. TURRET MILLING HEAD
Introducing our advanced turret milling head, which offers a remarkable 45° swivel forward-backward and a 90° rotation left-right. Perfect for handling intricate angles and complex projects with ease.
3. SPINDLE
Featuring a high-precision R8/NT30/NT40 spindle with an impressive runout of just 0.003mm, ensuring the ultimate in accuracy and precision.
4. X/Y/Z AUTO FEED
Our X/Y axes auto feed combined with the electrically lifted Z axis transforms efficiency, making operations smoother and more streamlined than ever.
5. DRO
Boost precision and performance with our customizable 2-axis or 3-axis DRO, crafted to meet your specific operational demands.
NT40 5HP Universal Metal Fresadora Precision Manual Milling Machine Tools

Model				5EB
Table size			mm	1270*254*90
Travel		X axis	mm	900
		Y axis	mm	370
		Z axis	mm	360
Travel of spindle quill			mm	127
Maximum distance from spindle nose to table			mm	400
Spindle	Rotation speed (Step speed milling head)	50HZ	rpm	60-4530
		60HZ	rpm	80-5440
	Rotation speed (Variable speed milling head)	50HZ	rpm	40-3125
		60HZ	rpm	50-3750
	Rotation speed (Inverter speed milling head)	50HZ	rpm	0-4200
		60HZ	rpm	0-4200
	Taper			NT40
	Rated power		HP	5HP
Tilt Angle			Forward and backward	±45°
			Left and Right	±90°
Dimension			mm	1500*1700*2150
Weight			kg	1750

Shenzhen Joint Machinery Co., Ltd. reigns as a globally acclaimed leader in professional manufacturing and export of CNC lathe machines, CNC deep hole drilling machines, and Swiss-type automatic lathes. Augmented by a wide spectrum of superior milling and grinding machines, our commitment to delivering high-caliber machines and exceptional services is unwavering. By integrating cutting-edge technologies from Taiwan and Germany, our production ensures excellence and reliability, aligning with the industry's most stringent standards. Celebrated for their precision, stability, and reliability, our machines proficiently tackle diverse and intricate machining tasks. Our prestigious products have earned global acclaim, reaching markets across Asia, Europe, South America, North America, and beyond. We are devoted to forging long-lasting partnerships with customers worldwide, consistently delivering substantial business value together.

---
