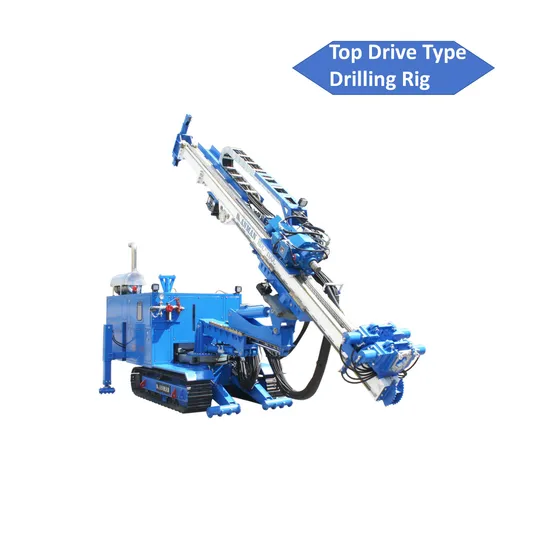

Hdl-100c Top Drive Type Multifunctional Drilling Rig

Product Description

HDL-100C Top Drive Type Multifunctional Drilling RigProduct DescriptionHDL-100C series drilling rig is top drive type multifunctional drilling rig which our company design and manufacture for complex formation according to market request.
Specification

Parameters	HDL-100C
Weight	8700 kg
Transport dimension	6900*2100*3000 mm
Vertical working dimension	5600*2100*6900 mm
Walking speed	1600/1100 m/h
Max torque	8000 N·m
Max speed	110 r/min
Max impact power	650 N·m
Max impact frequency	2300 bpm
Threaded output	H92
Hole angle	-15~105 °
Rod diameter	φ73~φ250 mm
Lifting height	3500 mm
Winch max lifting weight	1000 kg
Climbing angle	25 °
Engine	110 kW (Diesel)
System pressure	28 MPa
Fuel tank	90 L
Hydraulic oil tank	250 L
Feed stroke	4400 mm
Slide stroke	900 mm
Feeding force	40 kN
Feeding speed	0~9 m/min
Lifting force	40 kN
Lifting speed	0~9 m/min

DetailsMain characters
1.Whole rig is fully hydraulic controlled, and the drifter is driven by double hydraulic motors with high output torque, which has the ability of drilling complex strata and dealing with accidents, and meets most of construction requirements.
2.Drifter has high power percussion, which can achieve impacting drilling without DTH hammer and air compressor.
3.Omnidirectional variable angle mechanism, convenient to align the holes, can be adjusted in a wide range, reducing the requirements of the working surface.
4.Compact size, flexible movement, meet needs of construction of basement, indoor, tunnels and other narrow space.
5,Complementary with pipe drilling tools, can realize casing wall construction; complementary with grouting drilling tools, can realize drilling and grouting completed in one time, reduce material consumption.
6.Construction application: tunnel overrun probe hole, solution hole management, micro-disturbance grouting, house correcting and other construction processes. Applicable to: foundation pit, control building displacement, tunnels, basements and other engineering fields of construction.
