| US$5,000.00-30,000.00 | 1 Piece (MOQ) |

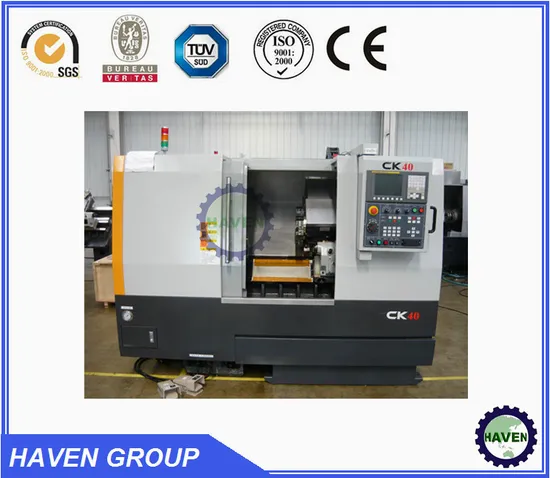

ITEMS | CK-40 |
| Max. swing over bed | Ø 400 mm |
| Max. machining diameter | Ø 300 mm |
| Max. swing over toolpost | Ø 250 mm |
| Max.machining length | 300 mm |
| Distance between centers | 440mm |
| Spindle nose | A2-5 (Integral type) A2-6(Assembly type) |
| Hydraulic chuck | 160mm 200mm |
| Spindle motor | 7.5-11Kw |
| Max.spindle speed range | 4500rpm 3000rpm |
| Spindle bore dia(mm) | Ø49 Ø57 |
| Max.bar feeding dia(mm) | Ø39 Ø45 |
| X/Z axis data | 2506/3210 |
| of X/Z axis | 160/400 |
| X/Z linnear guide-way data | 35 |
| Rapid travers rate X/Z | 12m/min 16m/min |
| X/Z axis positioning accuracy | ± 0.008 ± 0.012mm |
| X/Z axis accuracy of positioning repeatability | ± 0.0035mm ± 0.005mm |
| Turret and gang tools | Hydraulic turret |
| Quill diameter | Ø65mm |
| Quill travel | 80 |
| Max.tailstock travel | 300 |
| Taper of quill | M.T.4 |
| Over size | 3200X1500X1830 |
| Weight | 2500kg |
