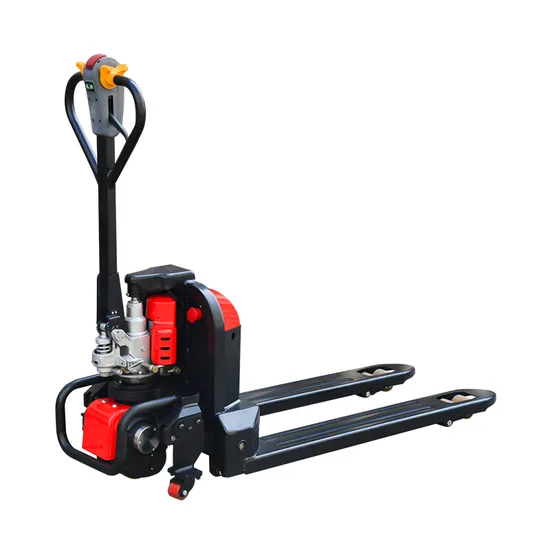

Heightened Fork 48V/65ah Lead Acid Battery Jack Electric Pallet Truck

Product Description

Product Description This electric stand-on pallet truck is operated by standing drivers and is mainly used for transporting goods in warehouses and factories. It is equipped with a shock-absorbing pedal and has good maneuverability and flexible steering.

Product Parameters

Specification
Characteristics
1.1	Manufacturer		DiDing
1.2	Model		CBD20C
1.3	Operation		Standed
1.4	Rated traction weight	Q(kg)	2000
1.5	Lift	h3(mm)	205
1.6	Service weight with battery	kg	320
1.7	Load centre	c(mm)	600
1.8	Axle centre to fork face	x(mm)	971
1.9	Wheel base	y(mm)	1151
1.10	Controller		48S09/10(QEXPAND)
Wheels
2.1	Wheels type		Polyurethane
2.2	Driving wheel size	∅×w	φ210×70
2.3	Bearing wheel size	∅×w	φ80×60
2.4	Additional wheels(dimensions)	∅×w	φ70×40
2.5	Wheels,number front/rear(x=driven)		1x,2/4
Dimensions
3.1	Fork Height,Lowered	h13(mm)	85
3.2	Overall length	L1(mm)	2033
3.3	Length to fork face	L2(mm)	313
3.4	Overall width	b1/b2(mm)	762
3.5	Fork dimensions	s/e/L(mm)	55/165/1220
3.6	Width of forks	b5(mm)	550/685
3.7	Min.Ground clearance	m2(mm)	30
3.8	Aisle width with pallet 1000×1200 along forks	Ast(mm)	2570
3.9	Aisle width with pallet 800×1200 along forks	Ast(mm)	2481
3.10	Min.Turning radius	Wa(mm)	1820
Performance
4.1	Travel spees,with/without load	(km/h)	5/5.5
4.2	Lifting speed,with/without load	(mm/s)	25
4.3	Lowering speed,with/without load	(mm/s)	30
4.4	Max.gradeability laden/unladen	(mm/s)	5/16
4.5	Service brake	(%)	Electromagnetic brake
Drive and Battery
5.1	Drive motor,output S2 60 min.	(kW)	1
5.2	Lift motor rating at S3 15%	(kW)	0.8
5.3	Battery according to DIN 43531/35/36 A,B,C		no
5.4	Battery voltage/rated capacity	(V/Ah)	48/65
5.5	Battery weight (±5%)	(kg)	15×4
Others
6.1	Noise level at operator 'sear	(dB(A))	69
6.2	Steering type		Electronic steering

Product Advantages	With electric power steering (EPS) system;
	48V/65Ah gel maintenance-free battery;
	1.2kW AC horizontal drive motor;
	With emergency reverse button for safety;
	Fork's length & width can be customized;
	Smart design, high efficiency;
	With heavy-duty cylinder.

Main Products
Company Profile DIDING was founded in 2006 and is based in Taixing City, Jiangsu Province (two hours' drive from Shanghai Airport).We are a provider of intelligent logistics systems that integrates research and development,production and sales. We have more than 100 employees, cover an area of about 20,000 square meters and have a turnover of more than 15 million U.S. Dollars in 2023.
Our goal is to be an influential manufacturer of warehouse logistics machinery in China and abroad. We have successfully applied for and obtained more than 100 certifications, including invention patents, utility models and design patents. We scrutinize every detail of our company's manufacturing and management and have passed:CE Certificates,ISO9001:2015;Contract-abiding and trustworthy enterprise awarded by the municipal government;High-tech industry certificate issued by Jiangsu Provincial Government.
DIDING's R&D and management team consists of more than 50 industry experts. Looking to the future, we will continue to be market-oriented, increase R&D investment, continuously optimize product structure, improve service quality, and share the future of intelligent logistics with customers worldwide. We believe that through continuous efforts and innovation, DIDING Machinery will take a leading position in the field of intelligent logistics, create more value for customers and make greater contributions to the development of the industry.
We will do better.
Certifications
Exhibitions
Packaging & Shipping

Shipping Port	SHANGHAI PORT OR OTHER
Shipping Time	15 DAYS
MOQ	1 SET

FAQ Q1: Do you have an advantage in price?
A: We have a group of long term cooperative raw mateial suppliers,and raw materials have price advantages. in addition, production personnel areskiled, and labor costs also have price advantages. Therefore, products of the same quality have a higher price advantage.
Q2:How is the quality of your product?
A: We focus on producing high-quality products with thick materials and durable core components. Each product has undergone longterm marketvalidation, with a low failure rate and can be purchased with confidence.
Q3:How soon can you respond client inquiries?
A: Our team is consisted of a group of diligent and dynamic people, working 24/7 to respond client inguiries and questions allthe time.
Q4: Can you provide customized seryices?
A: We can provide various customization services,including color customization, logo customization, body size customization, and body functioncustomization. lf you have customization needs, you can communicate with sales personnel.
A5:How long does it take for your product to be produced?
A: About standard products, we can deliver immediately. lf customized or complex products are needed, the production time will be 5-10 days.

---
