Product Details
Product Description
Product Description
Main charateristic:
The machine adopt the automatic punching type die cutting technology, it make the paper products roll slitting, die cutting and clear waste in one process. Effectively improve the utilization rate of raw material and finished product rate.
Performance:
1.Reduce the flatbed die cutting clear waste, direct cutting out the samples and incision smoothness, also greatly reducing the energy consumption and manpower.
2.This machine uses professional high-precision clearance to deliver the paper institutions and high speed automatic give paper, realize the lose paper smoothly, accurate positioning and paper collection neatly.
3.Adopt PLC microcomputer control system and the LCD visual interface, realize the machine working automatic.
4.Machine key parts, control system and fasteners used imported products elaborate assembly. Ensure the machine pressure stable, accurate positioning, safe and reliable.
5.This machine is the convenient food wrapping paper bowl,paper boxes, paper cups ,ect. Various kinds of paper products die cutting of the ideal equipment.
Technical Parameters
|
Punching speed
| 150-200 times/min
|
Maximum feed width
| 850mm
|
Maximum unwinding diameter
| 1300mm
|
Maximum die cuting width
| 850mm*400mm
|
positioning accuracy
| ±0.15mm
|
Voltage
| 380V±
|
Total power
| 10kw
|
Lubrication system
| manual
|
Machine weight
| 3000kg
|
Dimensions
| 3000mmX1400mmX2000mm
|
Standard configuration
|
Standard mold 1set
|
|
Main gear motor 4.0KW (Shanghai)
|
|
unwinding magnetic powder brake
|
|
Automatic lifting hydraulic system 1set
|
|
Inductive photoelectric eye 2pcs
|
|
Tracking color photoelectric eye 1pc (Italy)
|
|
Feeding gear motor 1.5KW
|
|
Frequency converter 4.0KW (delta)
| Tool box
|
servo motor 3KW 1pc (delta)
| Base pad (6 pcs)
|
touch screen (weinview)
| Separate loader 1set
|
PLC (delta)
|
|

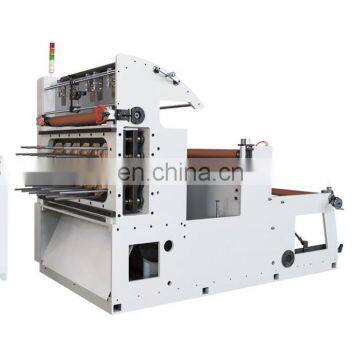

machine pictures:
