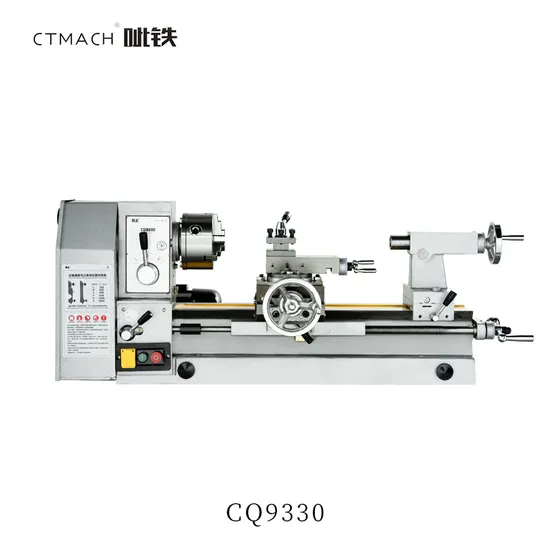

CQ9330 Small Desktop Bench Metal Turning Lathe Machine

US$1,060.00
5-9 Sets
US$1,000.00
10+ Sets

Basic Info.

Model NO.
CQ9330
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
1060*540*400mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
500

Product Description

Maximum turning diameter bed 300mm
Maximum turning diameter of middle carriage 140mm
Two top distance 470mm
Spindle speed range/Grade 160-1600rpm/6
Taper of spindle bore MT4
Spindle bore 26mm
Tailstock quill travel 40mm
Taper of tailstock quill MT3
Cross slide travel 160mm
Top slide travel 80mm
Range of metric threads/Grade 0.5-3mm/14
Range of inch threads/Grade 11-40T.P.I/20
Motor 220v/550w 50HZ
N.W. 135KG
Machine size 1060×540×400mm
