Cuber Concrete Block Machine System Made in China

Product Description

Product Description
Features

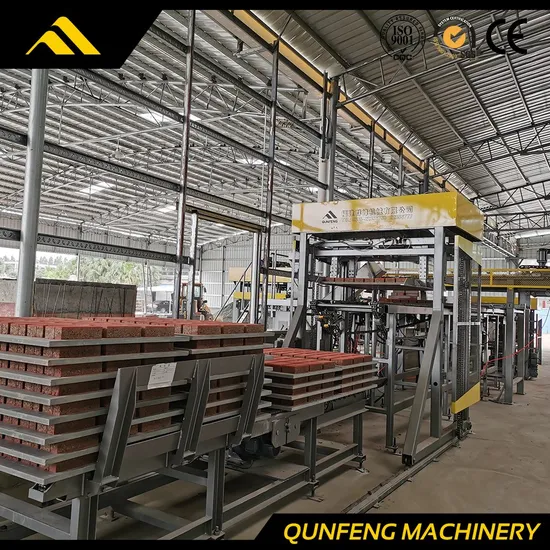

This cuber system is suitable for stacking cured blocks. Generally, it is set independently near the curing yard, and the cured products can be stacked on the spot. It also can be connected directly with block production line to realize the online cuber.

1. This cuber system has wide applicability to pallets of various specifications. Different types of blocks can be separated with pallets and rearranged, and be stacked cross-typed into requried cube. And the holes for forklift transport can be reserved automatically.2. After stacking, the whole cube will be sent out by conveyor, and can be packed manually or packed by automatic wrapping machine. 3. Blocks can be stacked with or without tray.4. Automatic operation can be realized through the real-time and fast data exchange of Ethernet, and high-end intelligent sensors. Besides, the control system can realize automatic fault alarm, automatic machine fault stop and prompt the cause of the fault, so trobleshooting can be easily realized without professional personnel.
Technical data

Operational Height (mm)	1750
Pallet Specification (mm)	Length:1100 Width:560-950
Maximum Weight for Each Pallet with Blocks (kg)	400
Cubing Specification (mm)	1000×1000 and 1200×1200
Height of Cuber (mm)	1400
Unloading Height (mm)	≤800
Block Height (mm)	50-200
Cycling Time (s)	13-16
Collecting Pallet Height (mm)	800
Power (kW)	≈50
