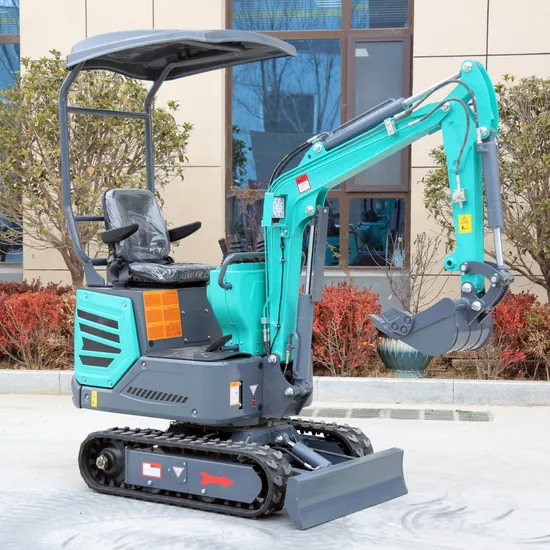

Mini Digger CE/EPA China Wholesale Compact Mini Excavators 1 Ton Prices with Closed Cab for Sale

Product Description

SDJK NEW JKW-12 PLUS-SALE
Support ODM OEM customization
Factory Direct Sales to Ensure Quality And Price 365 Days Warranty Srevice

1. German Continental Hydraulic Hose Advantages: international brand, stable and reliable quality!

2. Walking Motor The walking motor adopts Zhenjiang Dali brand with overflow function.

3. Science 192F Diesel Engine Add a separate suction port and suction port, the heat dissipation effect is excellent. Equipped with 8 shock-absorbing blocks, the shock-absorbing effect is excellent.

4. Leather Seat Leather seat, equipped with safety belt and armrest, adjustable front and rear, and adjustable back angle.

5. Easy Maintenance Design The rear cover adopts stainless steel heavy-duty engineering hinges, which is convenient to open, and the related problems of the engine can be checked and repaired after opening.

JKW-12
Total Weight	900kg
Bucket capacity	0.022m³
Forms of work	Backhoe
Track parts
Ground pressure	0.4kgf/cm²
Track	rubber
Tension type	Grease cylinder
Hydraulic pump	Gear pump

Engine
Model	KOOP192FA
Displacement	0.499
Rated output power/speed	7.6kw 3000r/min
Maximum torque	25N.m 2500r/min

Total length (during transportation)	A	2870mm
Overall width (transportation/operation)	B	930mm
Total height (with/without canopy)	C	2285(2030)mm
Dozer blade width	D	937mm
Dozer blade height		210mm
Track center distance	E	746mm
Standard track shoe width		180mm
Platform ground clearance		405mm
Standard bucket width (with/without side teeth)		380/330mm
Track length		1200mm
Maximum digging height	F	2490mm
Maximum unloading height	G	1745mm
Maximum digging depth	H	1725mm
Maximum vertical boom digging depth	I	1655mm
Maximum digging distance	J	3030mm
Minimum turning radius of front end	K	1490mm
Maximum digging distance	L	2940mm
Maximum bulldozing height	M	170mm
Deepest bulldozing height	N	240mm

Speed		Hydraulic fluid capacity
Maximum travel speed	1.2km/h	Work pressure	16MPa
Swing speed	9rpm	Hydraulic oil tank capacity	18L
Maximum climbing ability	30°	Engine oil capacity	1.65L
Maximum digging force	6.5	Fuel tank capacity	5.5L

Company Profile
Founded in 2004, Shandong JK Machinery Co., Ltd is a manufacturer and trader, specialized in the research and development, sales and service of crawler excavators and wheel excavators, wheel loaders, backhoe loaders and skid steer loaders, road rollers, and other construction machines like pile drivers and drilling rigs, bulldozers and motor graders. We are located in Jining city, which is a well-known traditional and prosperous machinery industry base in North China. Committed to providing quality products and services, JK employs 40 experienced technical and management personnel. Over the past few years of production and management and exploration, JK set up its own quality management system and service system. We make all of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Selling well in 300 cities and 30 provinces around China, our products are also exported to more than 20 countries and regions all over the world. And we will keep working hard and increase investment to improve our quality and service for many years in the future. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. We sincerely welcome clients and friends to visit us and join us.
Certificate
Our Service
Rich experience professional sales team.
OEM service available.
Process visualization.
365 days warranty srevice.
24/7 one-on-one professional after-sales guide online
FAQ 1.Are you original manufacturer?
Yes,we sdjk are a manufacturer in construction machinery in China and we have the whole series products you need
2.What kind terms of payment can be accepted?
T/T, L/C at sight, Trade Assurance on etc.
3.Which incoterms terms can we work?
Normally we work on FOB,CFR,CIF,FCA,CIP,CPT
4.What about the delivery time?
7days after receving the deposit
5.What about the warranty time?
12 months after shipment, engine is 6 months
6.What about the minimum order quantity?
The MOQ is 1 set
7.Could you stick customers brand on the products?

---
